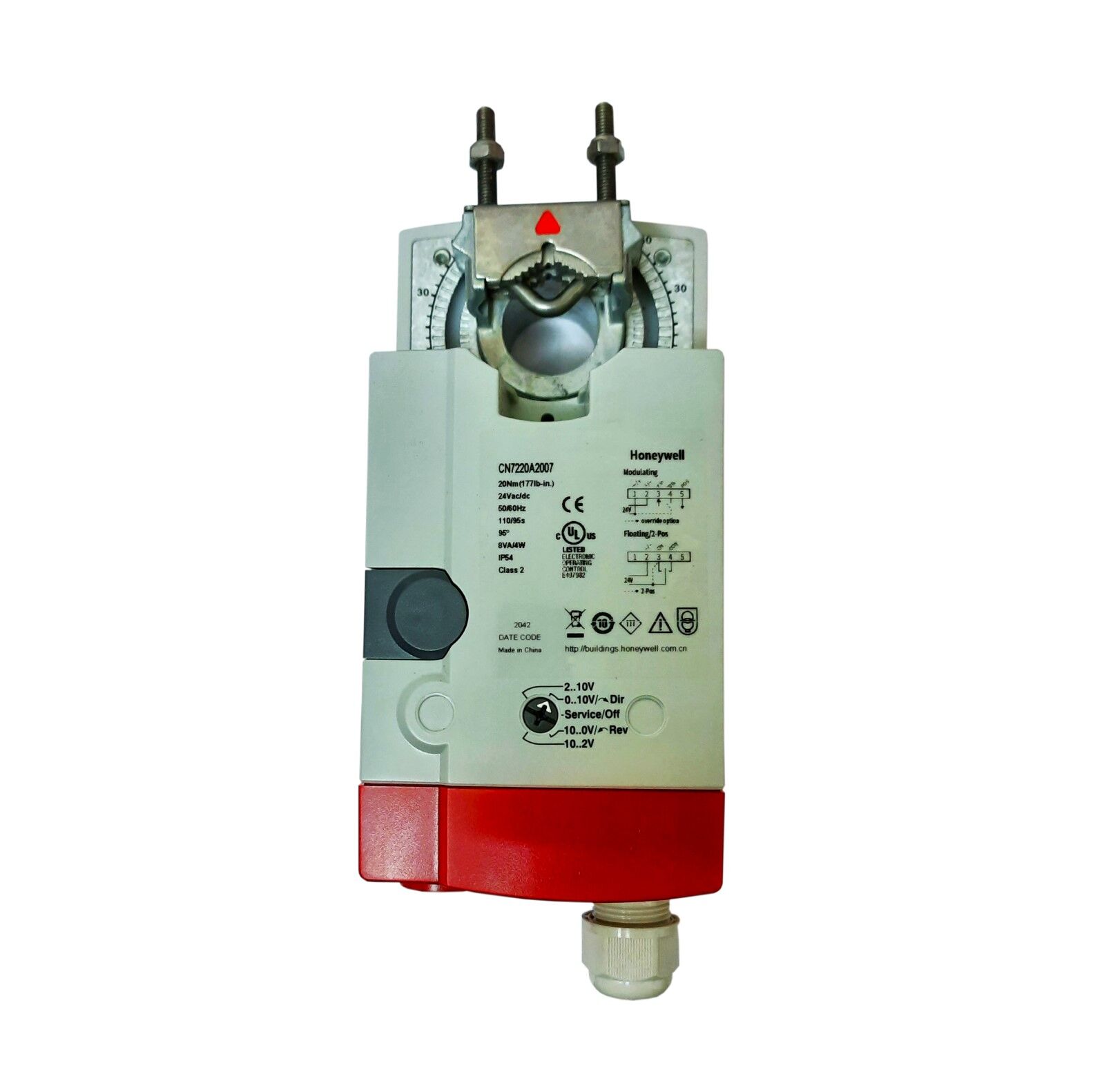

CN7220A2007 Honeywell Damper Actuator

13,931.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model CN7220A2007
Supply voltage 24 Vac/dc ±15%, 50/60 Hz;
Nominal voltage 24 Vac/dc, 50/60 Hz;
Power consumption 6 VA / 3 W
Ambient limits Ambient operating limits -20…+60 °C (-5…+140 °F)

Ambient storage limits -40…+80 °C (-40…+175 °F)

Relative humidity 5…95%, non-condensing

Safety Protection standard IP54 as per EN 60529
Lifetime Full strokes 60000

Repositions 1.5 million

Mounting Round damper shaft 10…27 mm (3/8…1-1/16″)

Square damper shaft 10…18 mm (3/8…11/16″);

Shaft length 45° steps min. 22 mm (7/8″)

Control signal 0(2)…10 Vdc
0(4)…20 mA
Feedback signal Limits ± 1 mA at 0…10 V
Torque rating 20 Nm (177 lb-in)
Runtime 95 sec (60 Hz) / 110 sec (50 Hz or DC supply)
Rotation stroke 95° ± 3°
Weight (without cables) 1.35 kg (3 lbs.)
Certification CE & UL

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

CN7220A2007 Honeywell Damper Actuator , NON-SPRING RETURN DIRECT-COUPLED DAMPER  ACTUATORS FOR MODULATING AND FLOATING / 2 POSITION CONTROL GENERAL
These direct-coupled damper actuators provide modulating control for:
• air dampers,
• VAV units,
• air handling units,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 4.6 m2 / 50 sq.ft. (20 Nm / 177 lb-in) or 7.8 m2 / 85 sq. ft. (34 Nm / 300 lb-in) ( seal less dampers; air friction dependent ).

Features:-

20Nm,24Vac/Vdc, Modulating and floating/2-position control, Non-Spring return, Voltage Feedback Signal and without aux. Switch
