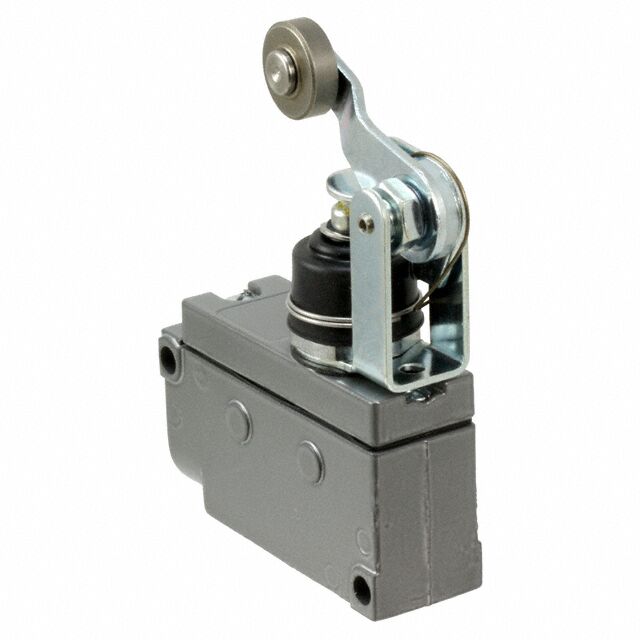

BZE7-2RN2-C Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
BRAND	Honeywell
MODEL NO.	BZE7-2RN2-C
Actuators	top pin plunger (boot sealed or standard type); inline roller plunger (boot sealed or standard type); cross roller plunger (boot sealed or standard type); roller lever adjustable (boot sealed or standard type); one-way roller lever adjustable (boot sealed); coil spring wobble (boot sealed)
Enclosure type	diagonal side mount with single conduit (E7 type); diagonal side mount or side mount with single conduit (E7S type), side mount with double conduit (E9 type) flange mount with single conduit (V7 type)
Housing material	electrostatic epoxy coated zinc die-cast
Termination	threaded conduit, 20 mm or PG 13,5
Sealing	actuator with boot seal: IP65 actuator (QN8 style) with internal plunger seal: IP65 actuator without boot seal or internal plunger seal: IP50
Switching options	SPDT (snap-action contacts) 1NC/1NO, same polarity DPDT (snap-action contacts) 2NC/2NO, each pole same polarity
Operating temperature	-30 °C to 70 °C [-22 °F to 158 °F]
Rated impulse voltage Ui	1.5 kV
Pollution degree (with enclosure)	1 (DTE Series); 2 (BZE and BZV Series)
Agency certifications	EN/IEC 60947-5-1 (all Series); CSA file 15775 (BZ prefix only)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BZE7-2RN2-C Honeywell Limit Switch is designed for various indoor and outdoor applications. Typical applications include equipment for commercial, industrial, and transportation industries. The electrostatic applied epoxy coating to the aluminum housings enhances the product’s durability in most applications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has a reliable snap-spring mechanism with more than 60 years of proven service. The sealed (plungers with boots) Limit Switch is preferred for applications where there could be exposure to liquid and/or particulate environments. The unsealed E7/V7 Series are ideal for applications where there will not be exposure to liquid or dust environments. The compact size of the limit switch permits installation where there is limited space available on equipment. The SPDT (Single Pole Double Throw)Honeywell BZE7-2RN-PG Limit Switch is certified to CE, UKCA and CSA for worldwide applications. While the DPDT (Double Pole Double Throw) E7/E7S/V7/ E9 Series of catalog listings are certified to CE and UKCA for many applications.
