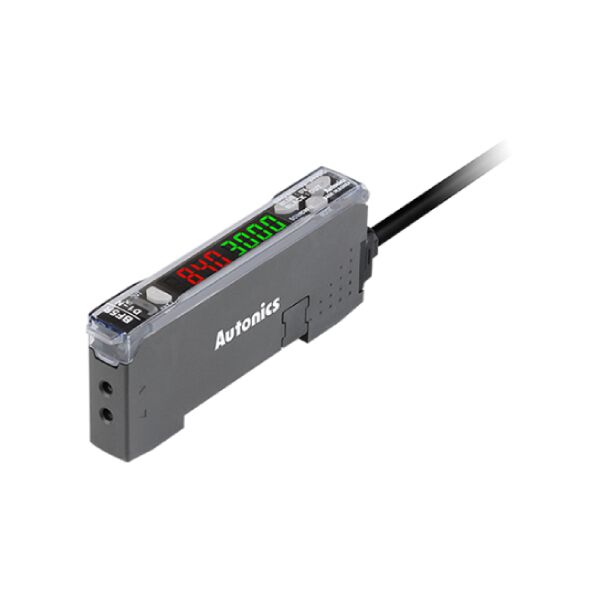

BF5R-D1-N Autonics Fiber Optic Sensor

Available on order

7,698.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model BF5R-D1-N
Type Dual display
Display method 4-digit 7-segment LED
Light source Red LED(660nm)
Response time 50℃, 150℃, 500?, 4ms, 10ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 50mA
Operation mode Light ON/Dark ON(set by parameter)
Control output NPN open collector
Timer function OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms)
Sensitivity adjustment Manual Teaching(auto-tuning, 1-point, 2-point, positioning)
? In multiple connection, batch teaching available
Communication I2C(max. 8 units)
Environment Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient temperature -10 to 50?, storage: -20 to 70℃
Protection structure IP40
Approval CE
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Mutual interference prevention Max. 8 unit sets(automatically set regardless of response time)
Initializing Initializing as factory mode
Energy saving Normal/Energy saving 1/Energy saving 2
Material Case: Polybutylene terephthalate, Cover: Polycarbonate
Accessories Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector
Weight Approx. 138g(approx. 20g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

BF5R-D1-N Autonics Fiber Optic Sensor

  • Type : Dual display
  • Display method : 4-digit 7-segment LED
  • Light source : Red LED(660nm)
  • Response time : 50㎲, 150㎲, 500㎲, 4ms, 10ms
  • Power supply : 12-24VDC  ±10%(ripple P-P: max. 10%)
