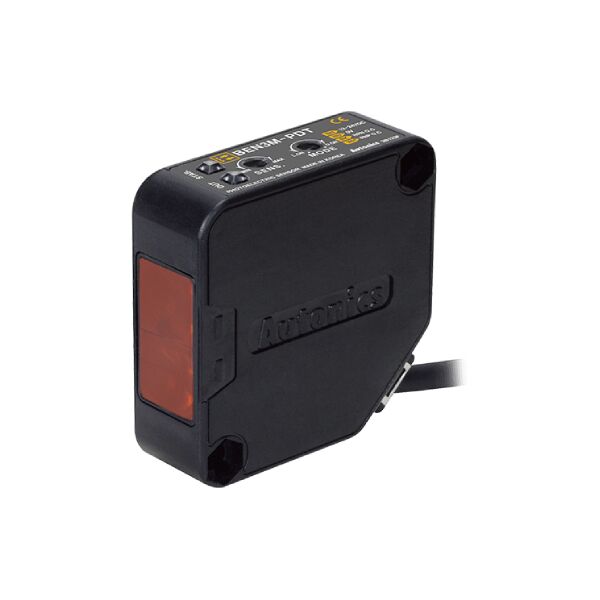

BEN3M-PDT Autonics Photoelectric Sensor

Available on order

3,219.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model Number BEN3M-PDT
Sensing Type Retroreflective type(built-in polarizing filter)
Sensing Distance 3m(MS-2)
Sensing Target Opaque material of min. Ø60mm
Light source Red LED(660nm)
Response time Max. 1ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 50mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output NPN, PNP open collector simultaneous output
Connection type Cable type(Ø5, 2m)
Environment Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient temperature -20 to 65℃, storage: -25 to 70℃
Protection structure IP50
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,
Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),
Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,
Nut: steel chromium molybden
Accessories Individual Reflector(MS-2)
Accessories Common Adjuster driver, Fixing bracket, Bolts, Nuts
Weight Approx. 200g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics BEN5M-MFR Retroreflective Photo Sensor

Description

BEN3M-PDT  Autonics Photoelectric Sensor

Features:

  • Small and universal voltage type
  • Easy Installation with LED indicators on product.
  • Able to set the operation mode by switch (Light ON/ Dark ON)
  • Status and output LED indication
  • Built-in IC Photo Diode for ambient light and electrical noise.
