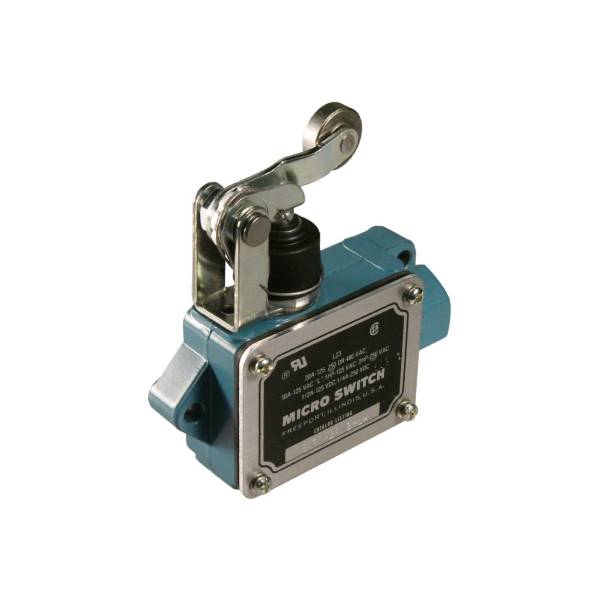

BAF1-2RN2-LH Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No	BAF1-2RN2-LH
Switch Type	SPDT
Conduit	1/2 in-14 NPT
Operating temperature	-32 °C to 71 °C [-25 °F to 160 °F] (standard)
Housing material	Zinc die-cast
Approvals	UL, CSA
Actuator Position	Left
Electric Rating	D
Seal boot	Yes
Options	field adjustable 360° horizontally and 225° vertically

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BAF1-2RN2-LH Honeywell Limit Switch is high capacity enclosed switches offer elastomer boot on sealed actuator version that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated “right” or “left,” when looking at the nameplate.
