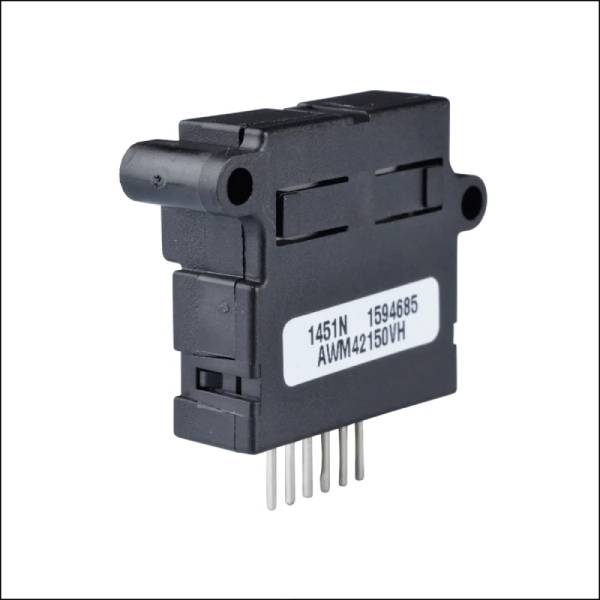

AWM42150VH Honeywell Airflow Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	AWM42150VH
Flow range (full scale)1	±30 SCCM
Calibration gas	–
Recommended excitation voltage	10 ±0.01 Vdc
Power supply: minimum maximum	8.0 Vdc 15.0 Vdc
Power consumption	30 mW typ.
Output at laser trim point	8.5 mV ±1.5 mVdc at 25 SCCM
Null output	0 mV ±1 mV
Null output shift (-25°C to 85°C)	±0.20 mVdc
Output voltage shift: 25°C to -25°C 25°C to 85°C	+2.5 % reading max. -2.5 % reading max.
Repeatability and hysteresis1	±0.35 % FSO typ
Pressure drop at full scale	0.008 inH20 typ.
Response time2	1.0 ms typ. 3.0 ms max.

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

AWM42150VH Honeywell Airflow Sensors

The AWM40000 Series Airflow Sensors are based on proven microbridge technology and include both unamplified sensor-only devices
and amplified signal conditioned devices. The microbridge mass airflow sensor operates on the theory of heat transfer. Mass airflow is directed across the surface of the sensing elements. Output voltage varies in proportion to the mass air or other gas flow through the inlet and outlet ports of the package.
This sensor has a unique silicon chip based on advanced microstructure technology. It consists of a thin film, thermally-isolated bridge structure containing heater, and temperature sensing elements. The bridge structure provides a sensitive and fast response to the flow of air or other gas over the chip. Dual sensing elements positioned on both sides of a central heating element indicate flow direction as well as flow rate. The specially-designed housing precisely directs and controls the airflow across the microstructure sensing element. Mechanical design of the package allows it to be easily mounted to printed circuit boards. Laser-trimmed, thick film and thin film resistors provide consistent interchangeability from one device to the next. The microbridge mass airflow sensor uses temperature sensitive resistors deposited within a thin film of silicon nitride. They are suspended in the form of two bridges over an etched cavity in the silicon.
