A3EF Carbon Monoxide (CO) Sensor - City Technology

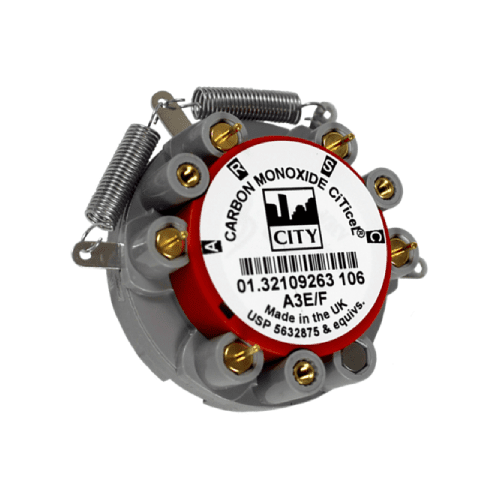

AB005-C09(A3EF) City Technology Carbon Monoxide Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	City Technology
Model Number	AB005-C09 (A3EF)
Operating Principle	4-electrode electrochemical
Measurement Range	0-2000 ppm CO
Maximum Overload	4000 ppm CO
Filter	To remove acid gases
Sensitivity*	0.075 ± 0.025 µA/ppm
Response Time (T90)*	< 38 seconds
Baseline Offset (clean air)	-2 to +17 ppm equivalent
Resolution	1 ppm
Repeatability	<1% of signal
Linearity	Linear
Recommended Load Resistor	10 Ω
Bias Voltage	0 or +250 mV
Weight	25 g
Housing Material	Polycarbonate
Orientation	Any
Typical Applications	Ambient Environmental Monitoring
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 20°C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Category: City Technology Medical Oxygen Sensor Tags: AB005-C09(A3EF) AB005-C09(A3EF) City Technology Carbon Monoxide Sensor City Technology Carbon AB005-C09(A3EF) Monoxide Sensor City Technology Carbon Monoxide Sensor oxygen sensor

Description
Reviews (0)

Description

AB005-C09(A3EF) City Technology Carbon Monoxide Sensor

A3EF CiTiceL® Carbon Monoxide (CO) Gas Sensor

Key Features & Benefits

4th electrode for compensation of hydrogen cross interference
Electrical connection via PCB pins or solder tags
