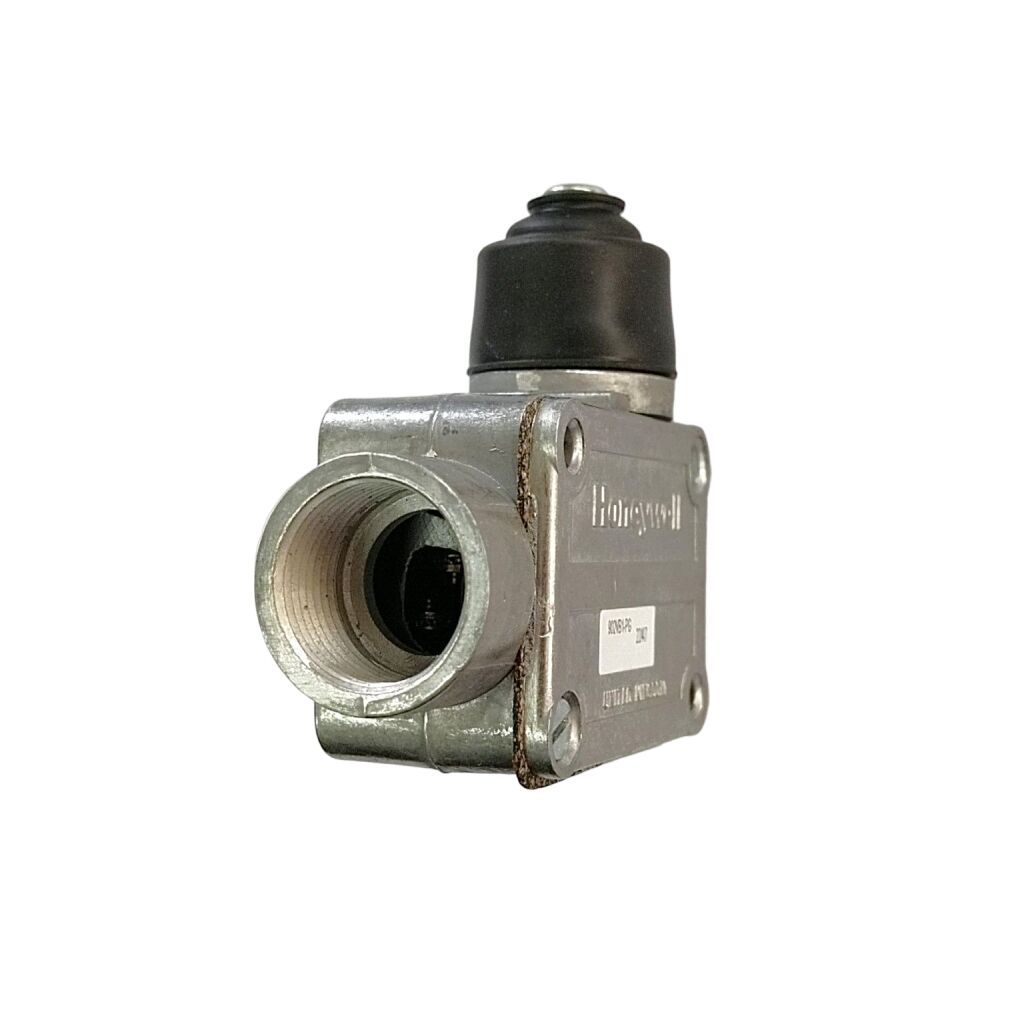

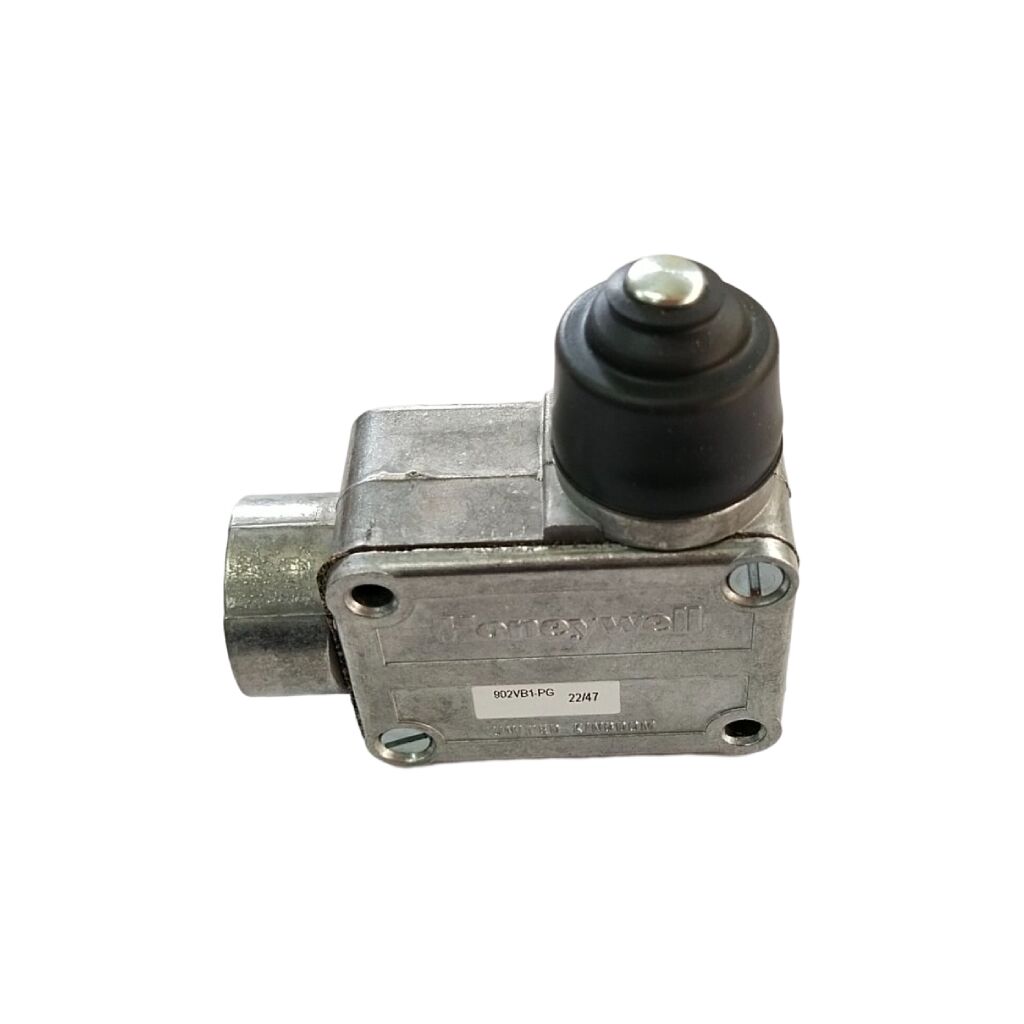

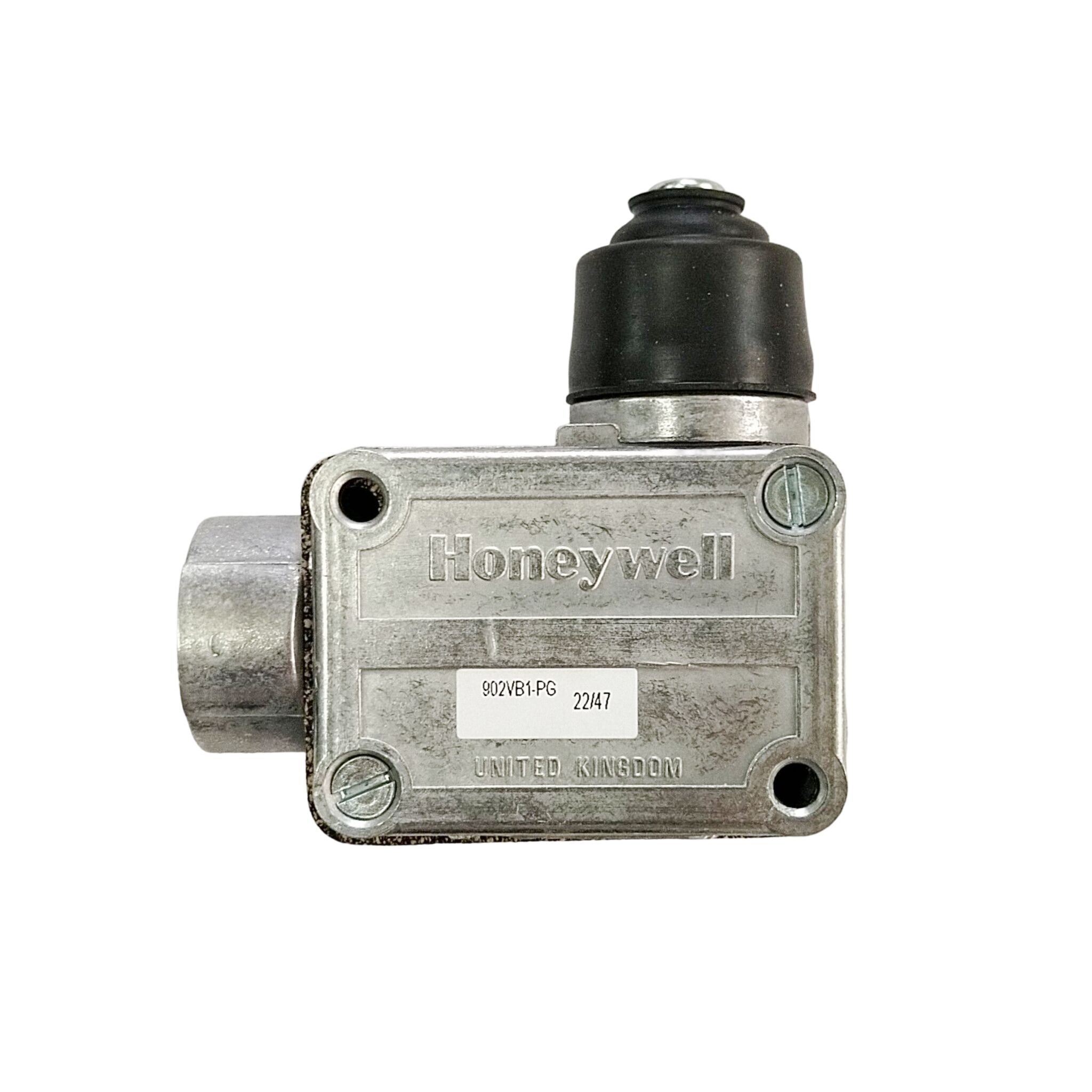

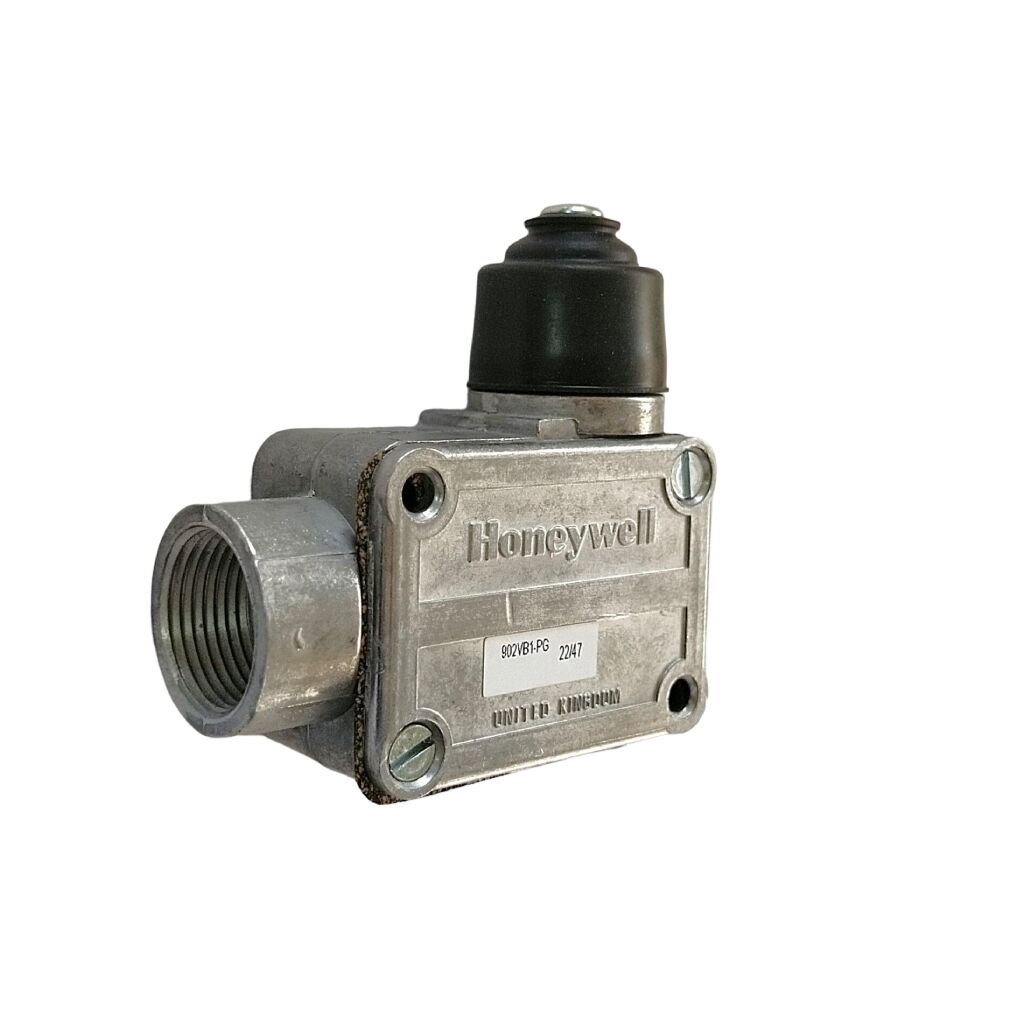

902VB1-PG Honeywell Micro Switch

Available on order

7,250.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. 902VB1-PG
Temperature Range -0 to +70 Deg C
Protection Class IP65
Conduit Thread 20mm or PG 13,5
Mechanical Life 10000000
Electrical Rating 10A at 125 or 250 Vdc

0.5A at 125 Vdc

0.25A at 250 Vdc

1/3 HP at 125 Vac

Circuitry DPDT
Operating Force 1.8kg Max.
Actuator Pin Plunger

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

902VB1-PG Honeywell Micro Switch is rugged, yet inexpensive devices. These limit switches have been designed for industrial applications. They are splash proof against oil and water but are not intended for submerged operation. Mounting and connection are easy. This series incorporates either 1 or 2 MICRO SWITCH V3 precision switches in a die cast housing. The basic switches are easily replaceable.

Features

  1. Rugged construction
  2. Splash proof – IP65
  3. Basic switch easily replaced
  4. SPDT or DPDT circuitry available
  5. Wide operating temperature range -0 C to +70 Deg C
  6. Switch mounting and wire connection are easily made
  7. Conduit thread choice
  8. Special listings available, upon request, with operating temperature range of -30 C to +70 Deg C
