7554-101 Honeywell Process Monitor and Controller

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	7554-101
Order Code	7554-101
Input Type	±4.5 mV/V, strain gage
Numeric Display Format	Five (with no decimal)
Output	232 port ASCII, 9600 baud, 8-N-1; analog output: 0 Vdc to 2.4 Vdc (1 Vdc @ 2 mV/V)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

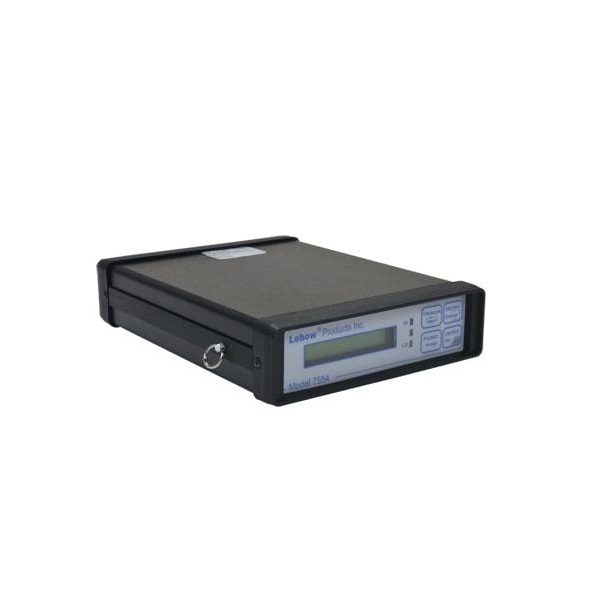

7554-101 Honeywell Process Monitor and Controller

DESCRIPTION
The Model 7554 is a portable process monitor and control instrument designed to work with Honeywell’s Auto-ID transducers (for
example, Model 1254) for plug-and-play operation.

FEATURES
• Continuous process monitoring (tracking)
• Three peak recording functions
• Two record functions (with multiple sampling rates from 1 Hz
to 10 kHz and storage for up to 8000 data points)
• Three process control output signals (for high, low, and
target occurrences)
• RS-232 output
• Storage capability for up to 8000 peak readings
• Four log operation functions (viewing, uploading, printing,
and erasing)
• Selectable engineering units
• Menu locking feature
• Automatic power-down (when sensor is not plugged in)
• Rechargeable Ni-Cad batteries
• Graphic user interface software available (consult factory)
• Optional simultaneous angle or RPM measurements
