Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. |
701-102BAB-B00
|
| Temperature range |
Class B and 2B: -70 °C to 500 °C (continuous operation) Class A: -30 °C to 300 °C |
| Leads | Pt-clad Ni wire |
| Long-term stability |
max. R0 drift 0.04% after 1000 h at 500 °C |
| Vibration resistance |
at least 40 g acceleration at 10 Hz to 2000 Hz, depends on installation |
| Shock resistance |
at least 100 g acceleration with 8 ms half sine wave, depends on installation |
| Environmental conditions |
unhoused for dry environments only |
| Insulation resistance |
>100 M at 20 °C; >2 M at 500 °C |
| Self heating | 0.6 K/mW at 0 °C |
| Response time | water current (v=0.4 m/s): t0.5=0.04 s; t0.9=0.12 s air stream (V=2 m/s): t0.5=2.2 s; t0.9=7.0 s |
| Measuring current | 100 : 0.3 mA to 1.0 mA 1000 : 0.1 mA to 0.3 mA |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

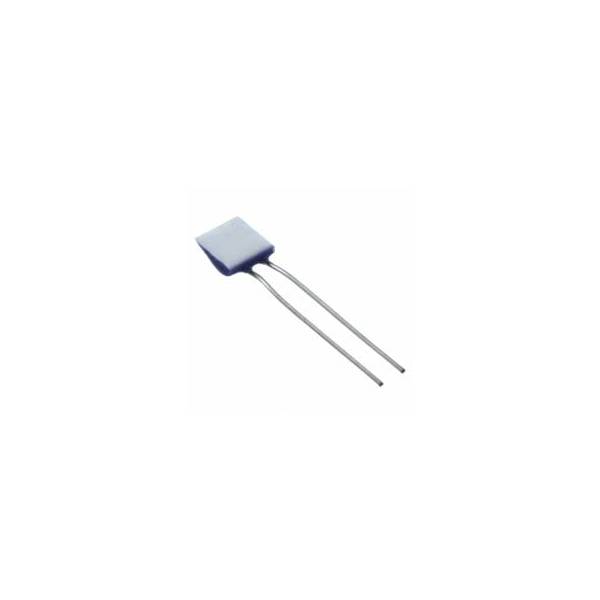

701-102BAB-B00 Honeywell
The 700 Series Platinum RTD (Resistance Temperature
Detector) is an economical, miniature temperature sensor. The
series is available in two different package configurations,
leaded and SMT (Surface Mount Technology). Two sizes are
available for each configuration, with the SMT available in
industry standard 0805 and 1206 packages.
