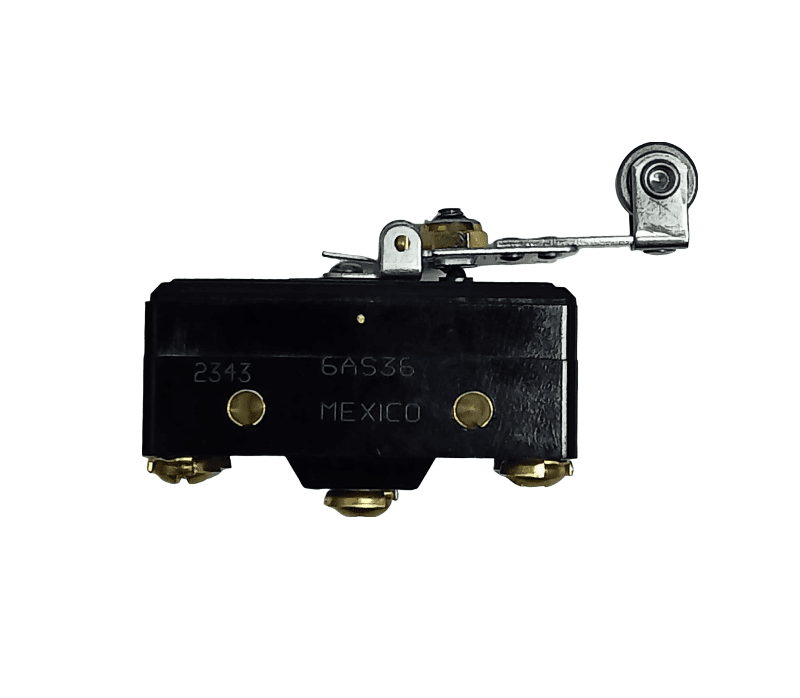

6AS36 Honeywell Micro Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model Number	6AS36
Recommended For	Lever over switch C. Adjustment over switch D
Electrical Data and UL Code	15 A A
Lever length	30,56 mm [1.203 in]
Terminal type	A2
Operating force	2,22 [8]
Release force	0,14 [0.5]
Overtravel	0,51 [0.020]
Differential travel	2,77 [0.109]
Operating position	29,77 [1.172]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

6AS36 Honeywell Micro Switch , Accurate, reliable, and repeatable, MICRO SWITCH™ BZ/BA/BM/BE Series features precise operating characteristics and enhanced life. These premium, large snap-action switches offer precision operation and sensitive differential
travel.
Utilizing state-of-the-art manufacturing processes and quality controls, Honeywell has engineered premium, large snap-action switches that meet various international agency requirements. Some models have military qualifications.
MICRO SWITCH™ BZ/BA/BM/BE Series are often used for precision on/off applications, as well as end of limit, presence/absence, and manual operator interface functions. Their engineered design is suitable for various application needs. Configured options with BZ, BA, BM, and BE switches provide a wide variety of operating and interface characteristics.
The MICRO SWITCH™ 6AS Series consists of two large premium BZ/BA/BM/BE snap-action switches ganged
together and actuated by a single actuator. Field adjustable operating point is an option for one or both switches.
