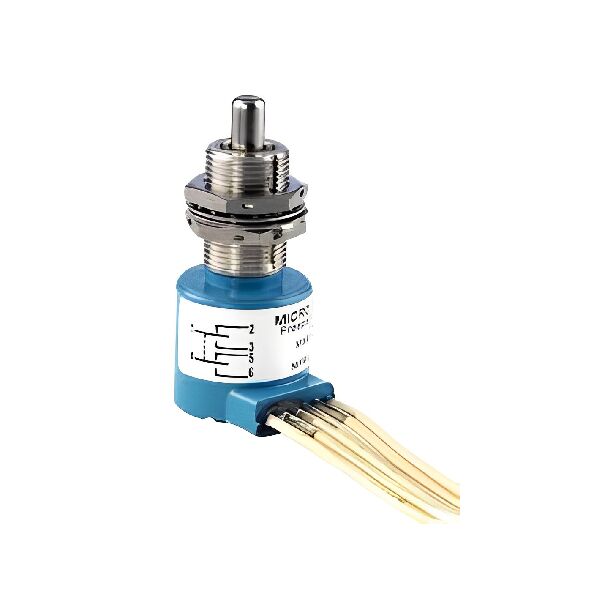

624HE1-6 Honeywell Hermetically Sealed Micro Switch

Available on order

15,328.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. 624HE1-6
Actuator Roller Plunger
Operating Force 22,2-53,4
Release Force 13,3 min mm
Pretravel 1,0 max mm
Overtravel 3,18 min mm
Differential Travel 0,51 max mm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 1HS1 Hermetically Sealed Micro Switch

Description

624HE1-6 Honeywell Hermetically Sealed Micro Switch

True hermetic sealing with metal-to-metal, glass-to-metal constuction assures maximum seal effectiveness for exceptionally long periods of time despite continuous changes in atmospheric pressures and temperatures. 1HE1-6 is directly interchangeable with the 1EN1-6 (MS24331-1) environmentproof switches, and has the same operating characteristics, physical dimensions, and electrical capacity. This switch
features corrosion resistance, small size, one hole wire-lock mounting, and MILW-22759/7 lead wire. Most EN type actuators can be provided
on HE switches. Contact MICRO SWITCH for more information.
