2102-500 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	2102-500
Order Code	2102-500,1AD,2U,6AC,15C
Torque Range	500 in-lb
Accuracy	±0.15 %
Output	2.5 mV/V (nominal) @ rated capacity
Temperature (Operating)	-54 °C to 93 °C [-65 °F to 200 °F]
Series Name	2102

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

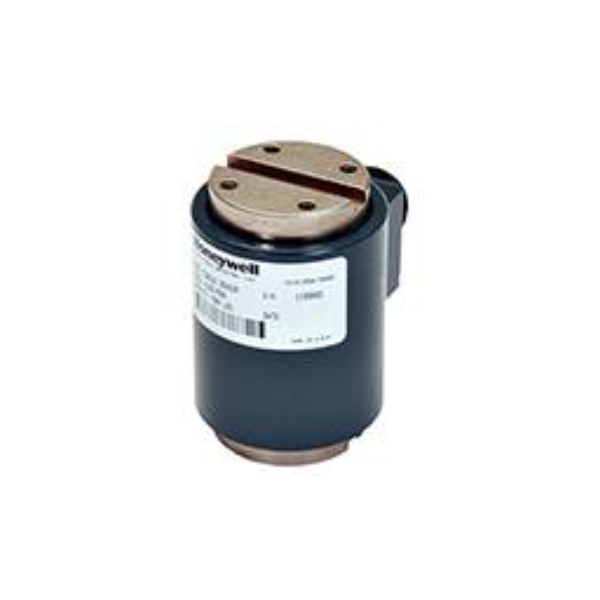

2102-500 Honeywell Torque Transducers

DESCRIPTION
Model 2102 small flanged reaction torque sensor is designed for
installation between test pieces such as motors, switches, axles,
or shafts and their mounting plate. These models operate and
are calibrated in both directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments.
These models have no moving parts and utilize four bonded
strain gages on a special machined portion of the transducer to
achieve a maximum non-linearity of 0.1% over a wide dynamic
range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 50 in-lb
to 1000 in-lb capacities.
