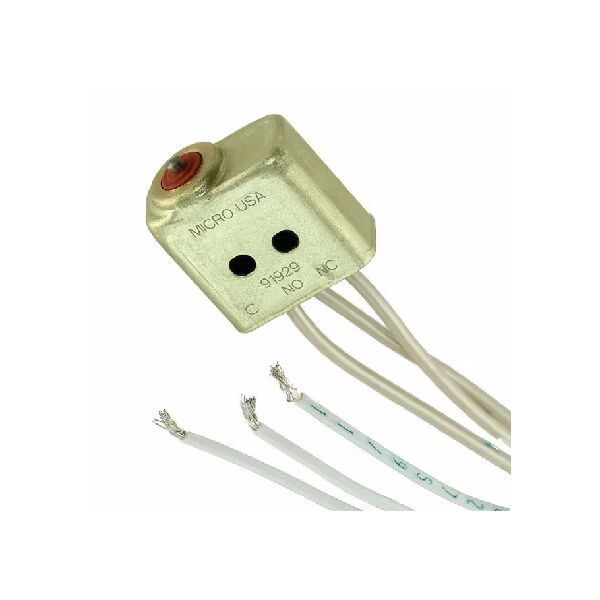

1XE1-3 Honeywell Hermetically Sealed Basic Micro Switch

Available on order

15,846.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. 1XE1-3
Housing material Anodized aluminum
Mechanical endurance 25,000
Electrical endurance 25,000
Circuitry SPST (NC), SPST (NO), SPDT
Electrical termination epoxy sealed leadwire, (0,52 mm² [20 awg]) or
epoxy sealed solder pins
Electrical rating 7 A @ 28 Vdc; 7 A @ 250 Vac, 60 Hz
Sealing Symbol 3 “watertight” per MIL-PRF-8805
Temperature range -53 °C to 105 °C [-65°F to 221 °F] (standard)
-26 °C to 85 °C [-15 °F to 185 °F] (5XE Series)
Temperature range (optional) -53 °C to 149 °C [-65°F to 300 °F] (14XE Series)
Vibration Grade 2 (15 G) per MIL-PRF-8805
Approvals UL, MIL-PRF-8805

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 1HM1 Hermetically Sealed Basic Micro Switch

Description

1XE1-3 Honeywell Micro Switch miniature sealed basic switches is design for precise and reliable position. It helps in indication of critical applications on aircraft and military systems. The Honeywell Hermetically Sealed Basic Micro Switch 1XE1-3 applications range from military, commercial aircraft, helicopters to military land vehicles (track and wheeled vehicles) equally suitable for not only commercial but also industrial applications where a degree of environmental sealing is require.

The environmentally sealed miniature XE Series is similar to the SE Series except smaller in package size, utilizing the Honeywell MICRO SWITCH SX subminiature electromechanical switch. In addition, select Honeywell XE switches are MIL-PRF-8805 qualified satisfying the requirements where a military qualified or compliant switch is required.

To add to the versatility of the SE and XE family of products, CSA and UL certified products are available where the application is not aerospace or military related.



Features and Benefits

  1. MIL-QUALIFIED AND AGENCY CERTIFIED
  2. COMPACT AND SEALED
  3. WELL SUITED FOR HIGH TEMPERATURES
  4. LOW VOLTAGE AND POWER DUTY CAPABILITY
  5. LEVERS FURTHER EXPAND FUNCTIONALITY
  6. RANGE OF TERMINATION OPTIONS



Potential Applications

  1. MILITARY AIRCRAFT AND HELICOPTERS
  2. COMMERCIAL AIRCRAFT AND HELICOPTERS
  3. AVIATION GROUND SUPPORT EQUIPMENT
  4. MILITARY LAND TRACK AND WHEELED VEHICLES
