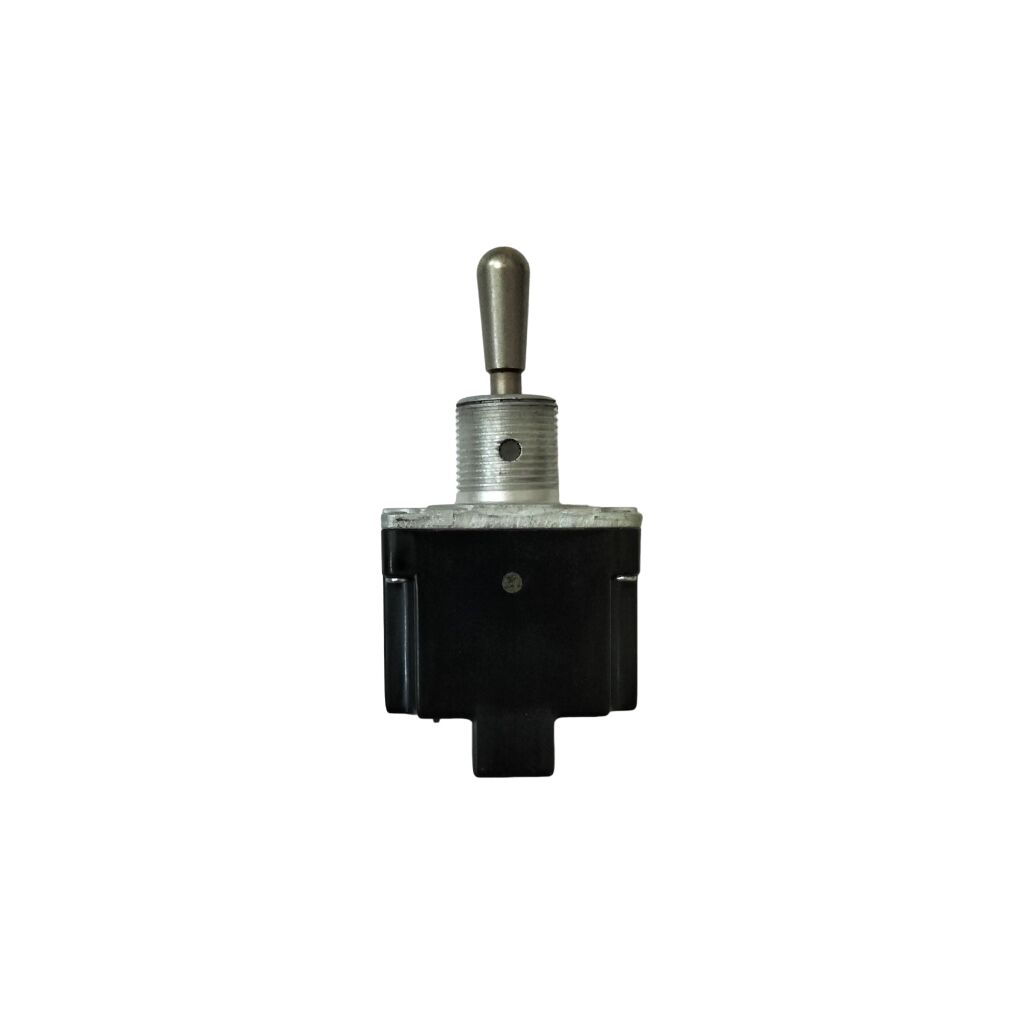

1TL1-7 Honeywell Toggle Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Military Number: MS24523-27

Product Details:

Product	Description
Brand	Honeywell
Model No.	1TL1-7
Description	Military-grade toggle switch
Sealing	qualified to MIL-DTL-3950
Operating temperature	-65 °C to 71 °C
Actuator	Paddle
Termination Style	Screw
Approvals	UL, CSA, CE
Amp rating	Up to 20 A, ac and dc capability
Keyway Position	1-2
Opposite Keyway	2-3
Contact Form	SPDT
Military Number	MS24523-27

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

1TL1-7 Honeywell Toggle Switch TL Series toggle switches are military qualified to MIL-DTL-3950, specifications for sealed toggle switches. Quality construction features include a bonded seal between the toggle lever and bushing, and between the cover and case.
The robust design of the TL Series toggle is well-suited for many military, aerospace and other demanding applications where reliability is essential. These applications include environments where the panels are subjected to mechanical shock, vibration, and temperature extremes as well as environments with dust, splashing or hose-directed water.
TL Series toggle switches offer a variety of circuitry and pole options to easily integrate into a number of applications. A long history in military and aerospace applications has shown the TL Series toggle provides reliable performance with long operating life under the toughest conditions.
