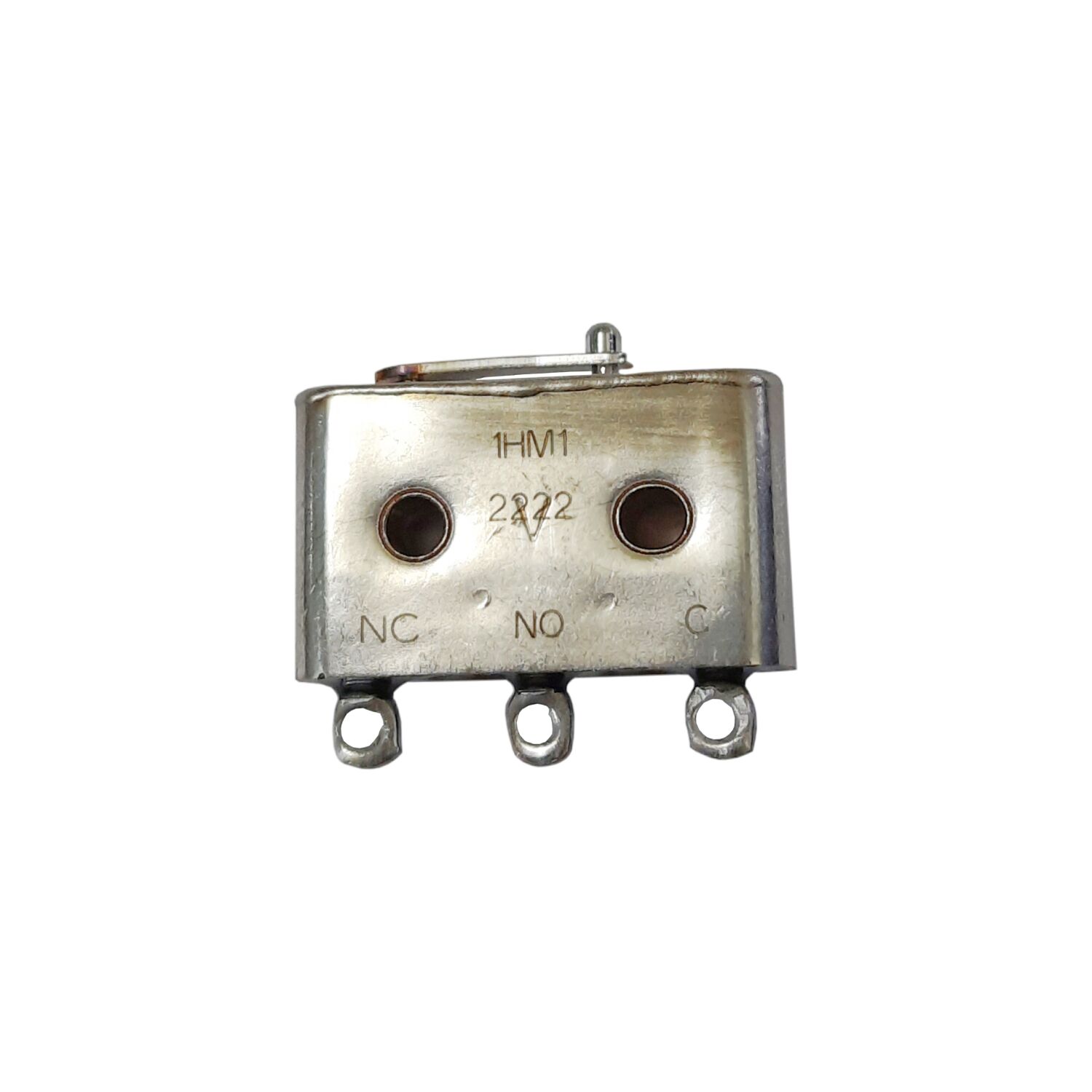

Name: 1HM1 Honeywell Hermetic Sealed Basic Micro Switch
SKU: 65057
Price: 39400.00 INR
Availability: OutOfStock

1HM1 Honeywell Hermetic Sealed Basic Micro Switch

Available on order

₹39,400.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model Number	1HM1
Switch Type	Subminiature 12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0.25 in W x 0.8 in L]
Sealed	Yes, Hermetic
Ampere Rating	5 A
Circuitry	Single Pole Double Throw (SPDT)
Actuator	Integral Lever
Operating Temperature Range	-184 °C to 121 °C [-300 °F to 250 °F]
Voltage	28 Vdc
Contact Type	Silver
Operating Force	1,95 N [7 oz] max.
Release Force	0,28 N [1.0 oz] min.
Pretravel	0,76 mm [0.030 in] max.
Overtravel	0,08 mm [0.003 in] min.
Differential Travel	0,15 mm [0.006 in] max.

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

1HM1 Honeywell Hermetic Sealed Basic Micro Switches , Honeywell HM hermetic sealed miniature basic switches are designed for a variety of commercial and military aircraft as well as equipment for deep space applications (high altitude requirements). Honeywell 11HM1 Micro Switches miniature hermetic sealed switches can be found in a variety of other applications including military land vehicles, marine environments, and other harsh industrial environments. The switches are available as a MIL-PRF-8805 qualified switch. Select HM switches are available with UL 508 certification for industrial or surface transportation applications. The MICRO SWITCH HM hermetic sealed switch design incorporates the glass-to-metal and metal-to-metal sealing with more than 50 years of use in multiple applications
