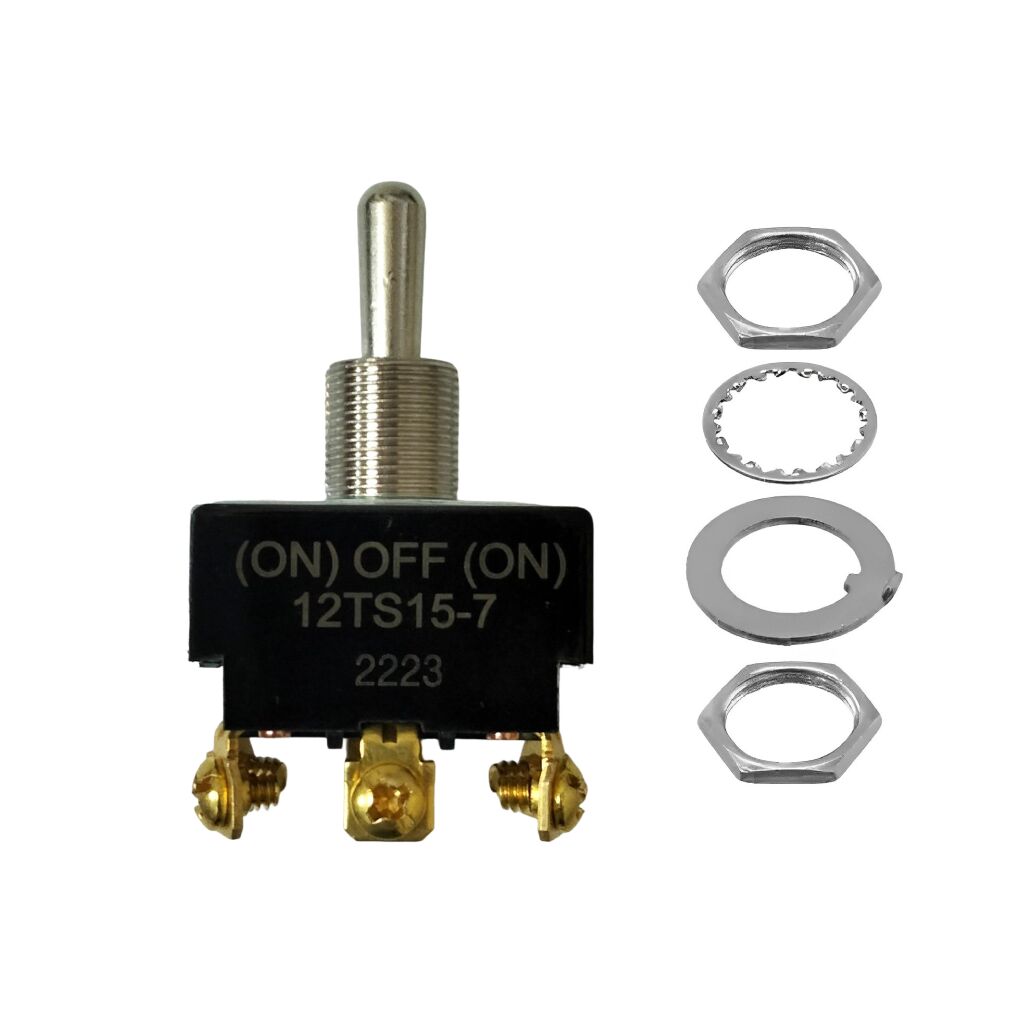

12TS15-7 Honeywell Toggle Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	12TS15-7
Operating temperature	-54 °C to 71 °C
Actuator	Paddle
Action	Momentary, maintained
Mounting	Bushing 15/32 in
Circuitry	DPDT
Termination	Screw
Contacts	Silver tin oxide and indium oxide
Amp rating	10 A
Approvals	UL, CSA
Electrical rating	10 A, 277 Vac; 20 A, 125 Vac; 1½ HP, 125 Vac / 250 Vac
UL Rating Code	L312
Keyway Position	2-1 & 5-4 ON*
Center Position	OFF
Opposite Keyway	2-3 & 5-6 ON*

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

12TS15-7 Honeywell Toggle Switch may be used anywhere manual operation is desired. They are an entry-level solution for applications that require an unsealed toggle switch. Special on-on-on circuitry can also be furnished. Honeywell 12TS15-7 Toggle Switch features broad circuitry and action availability considering 2- or 3-position options, momentary and maintained actions, and 1- and 2-pole circuitry. Switches available with
solder, screw or quick-connect termination styles.
