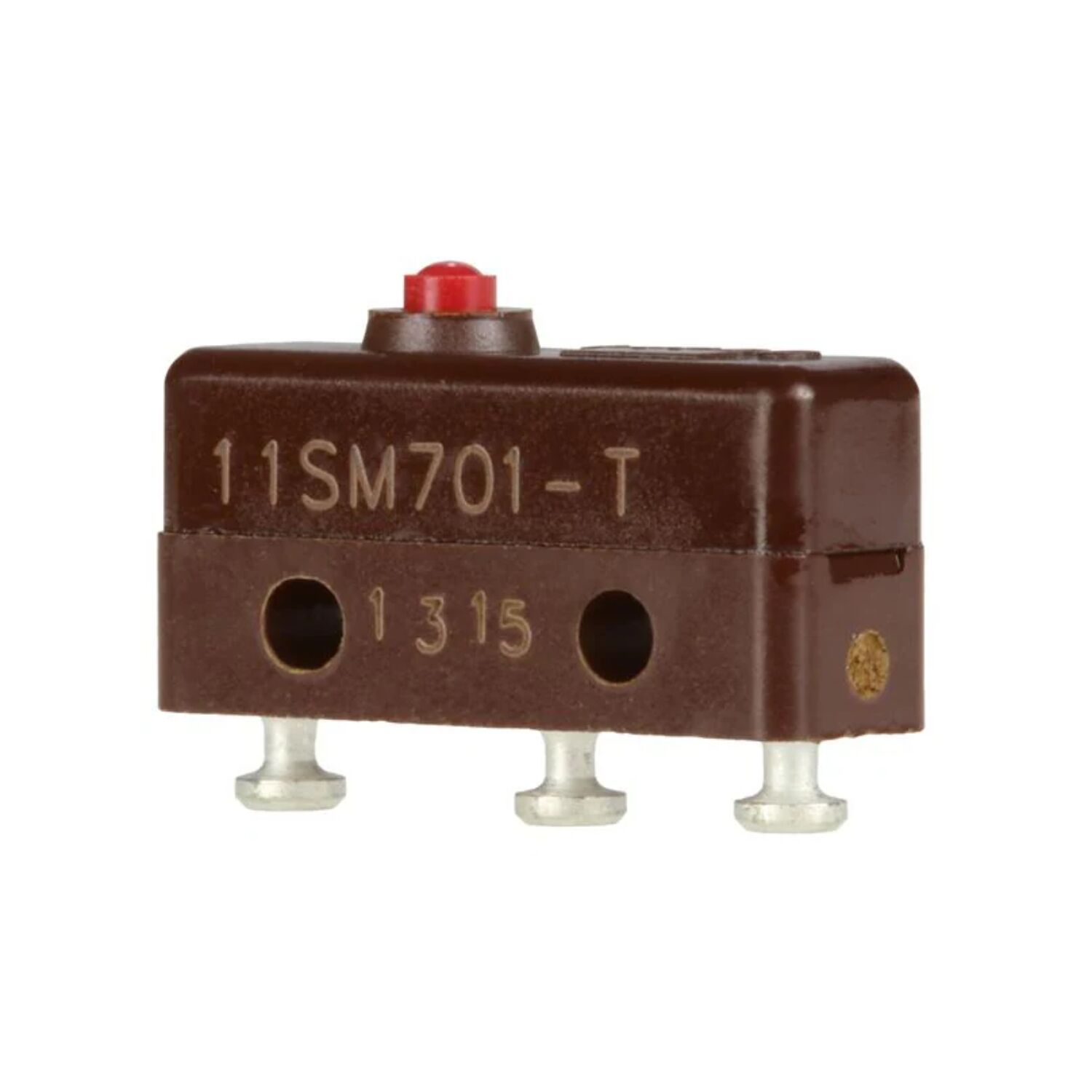

11SM701-T Honeywell Micro Switch

Available on order

1,131.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. 11SM701-T
Circuitry SPDT
Operating temperature -54°C to 121°C
Actuator Pin Plunger
Operating force 0,56 N
Release force 0,14 min. N
Pretravel 0,51 max. mm
Overtravel 0,13 min. mm
Differential travel 0,051 mm
Operating position 8,38 mm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V7-1C17E9-201 Micro Switch

Description

11SM701-T Honeywell Micro Switch

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH SM Series delivers consistent performance within a range of conditions.

Honeywell Micro Switch 11SM701-T is small in size and light weight combined with ample electrical capacity, precision operation, and extended life. Featuring high precision and repeatability, the SM Series offers gold contacts for low-energy switching and gold bifurcated contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SM switch.

The SM switch is available for power-duty switching up to 11 A (Vac) or 1/4 HP (Vac).

FEATURES

  1. Industry-leading mechanical life of up to 10,000,000 operations
  2. Selection of actuation, electrical termination, and operating characteristics along with high-temperature construction options
  3. Wide temperature range of -54°C to 204°C [-65°F to 400°F]
  4. MIL-PRF-8805 qualified listings in a lightweight, small package
  5. FAA-PMA approvals for commercial aircraft
  6. Choice of silver or gold-plated, or gold bifurcated contacts to handle a variety of electrical load requirements
  7. UL/CSA, cUL, ENEC, and CE approvals

POTENTIAL APPLICATIONS

  1. Precision switch assemblies for commercial aircraft to monitor doors for “closed” and “locked” position
  2. Landing gear monitor
  3. Precision switch assemblies for commercial cockpit applications for pushbuttons, toggle, or joystick assemblies
  4. Precision switch assemblies in military applications
  5. Assemblies for industrial pressure switches and temperature switches
  6. Power generation fuel level (gas and oil)
