Name: 11SM1 Honeywell Micro Switch
SKU: 64445
Price: 1253.00 INR
Availability: InStock

11SM1 Honeywell Micro Switch

₹1,253.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	11SM1
Differentiator	low operating force to 2 oz. max; power load switching capability to 11 A; motor load handling capacity to 1/4 HP (Vac)
Ampere rating	0.1 A to 11 A
Circuitry	SPDT
Operating force	0.71 oz to 6 oz
Termination	quick connect, solder, pcb
Actuator	pin plunger, straight lever, roller lever, simulated roller lever, paddle lever
Voltage	115 Vac, 125 Vac, 250 Vac, 30 Vdc
Agency approvals	UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA
Agency file information	CE: 61058-1; UL: E12252; CSA: LR41372
Operating temperature	-54°C to 121°C [-65°F to 250°F]; select catalog listings 204°C [400°F]
Contacts	silver, gold plated, bifurcated gold
Housing	phenolic
Sealing	sealed plunger on 411SM Series, other SM Series not weather sealed
Mechanical life	up to 10,000,000 operations for 11SM listings up to 80,000 operations for 1SM/41SM listings up to 1,000,000 operations for gold bifurcated contact
Size	12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0.25 in W x 0.8 in L]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

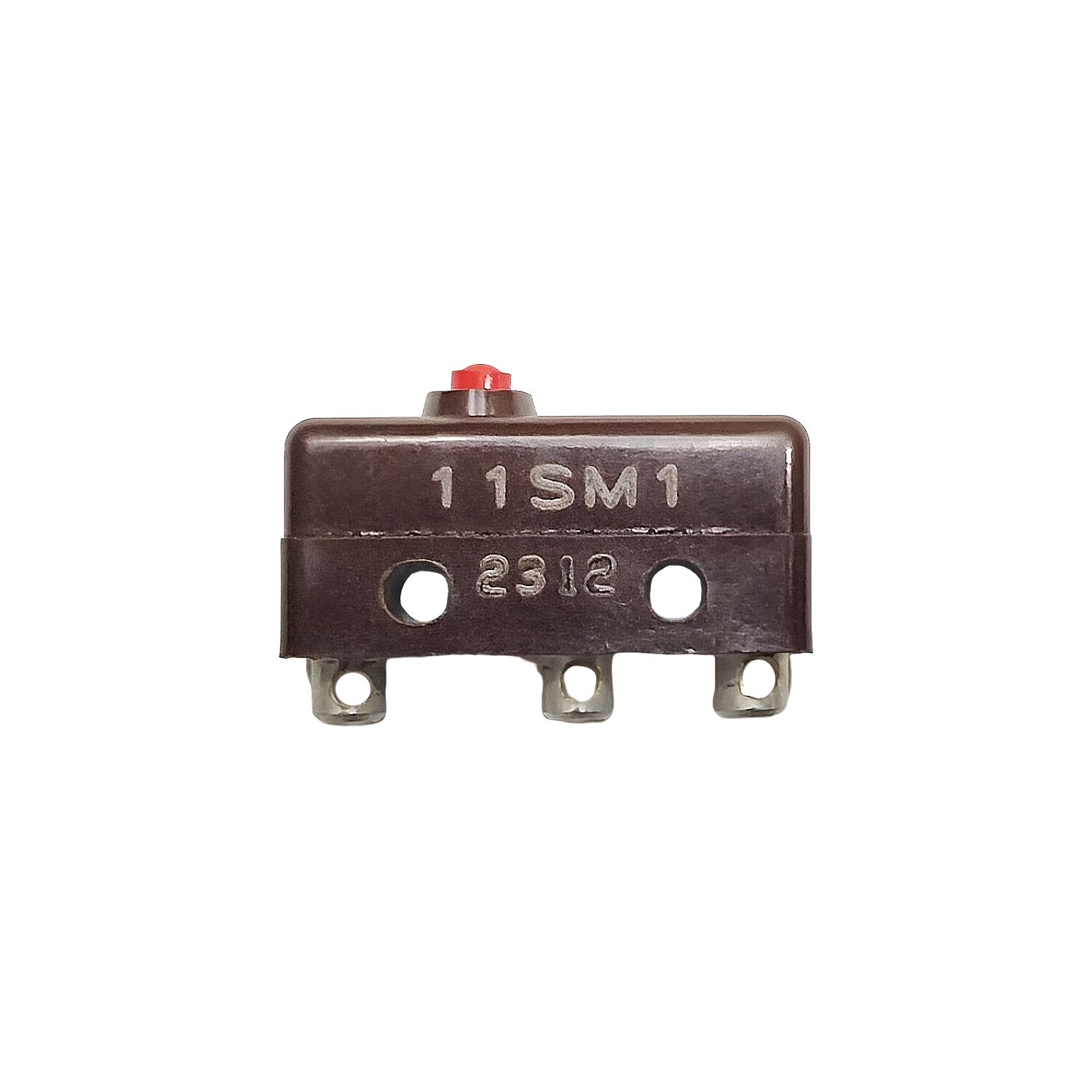

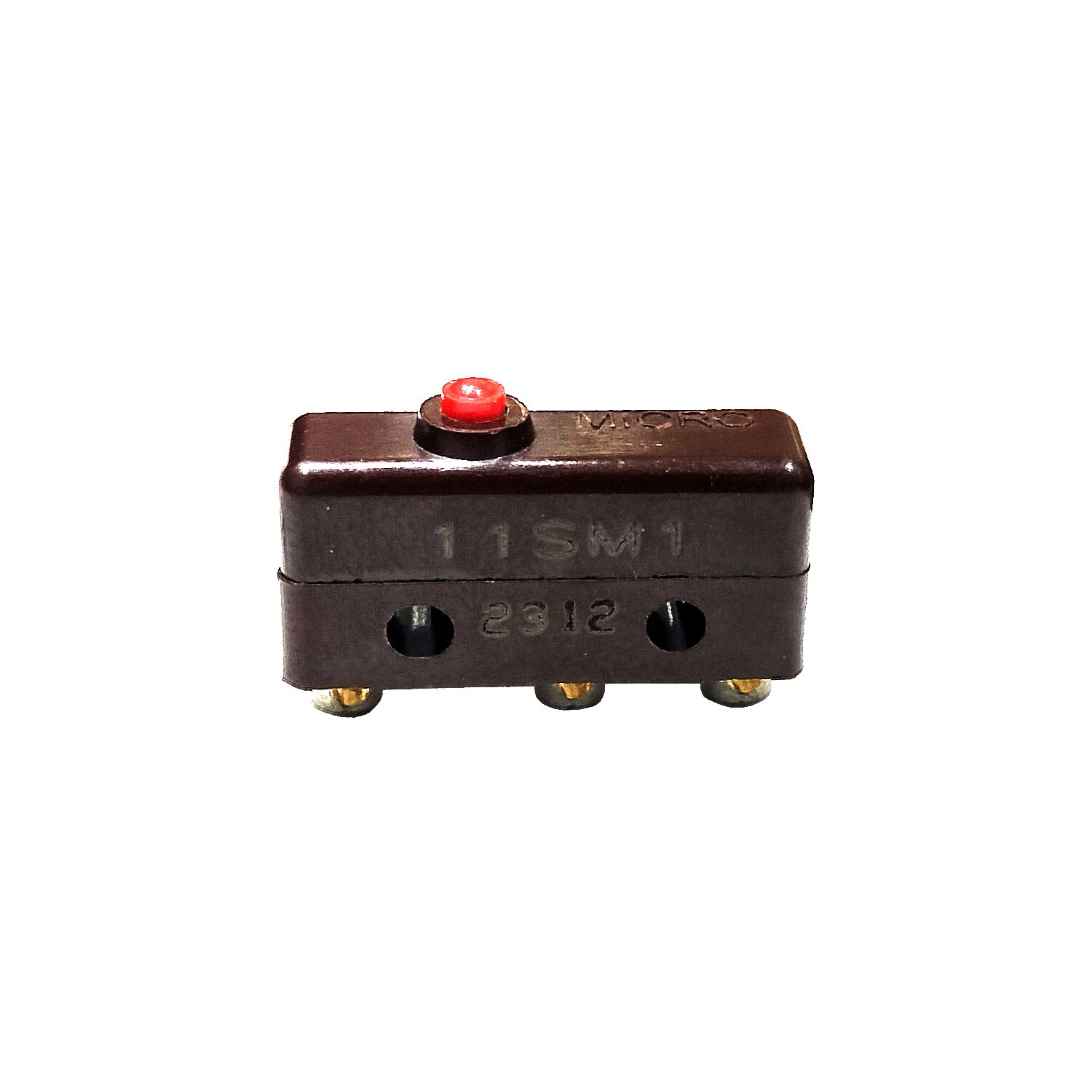

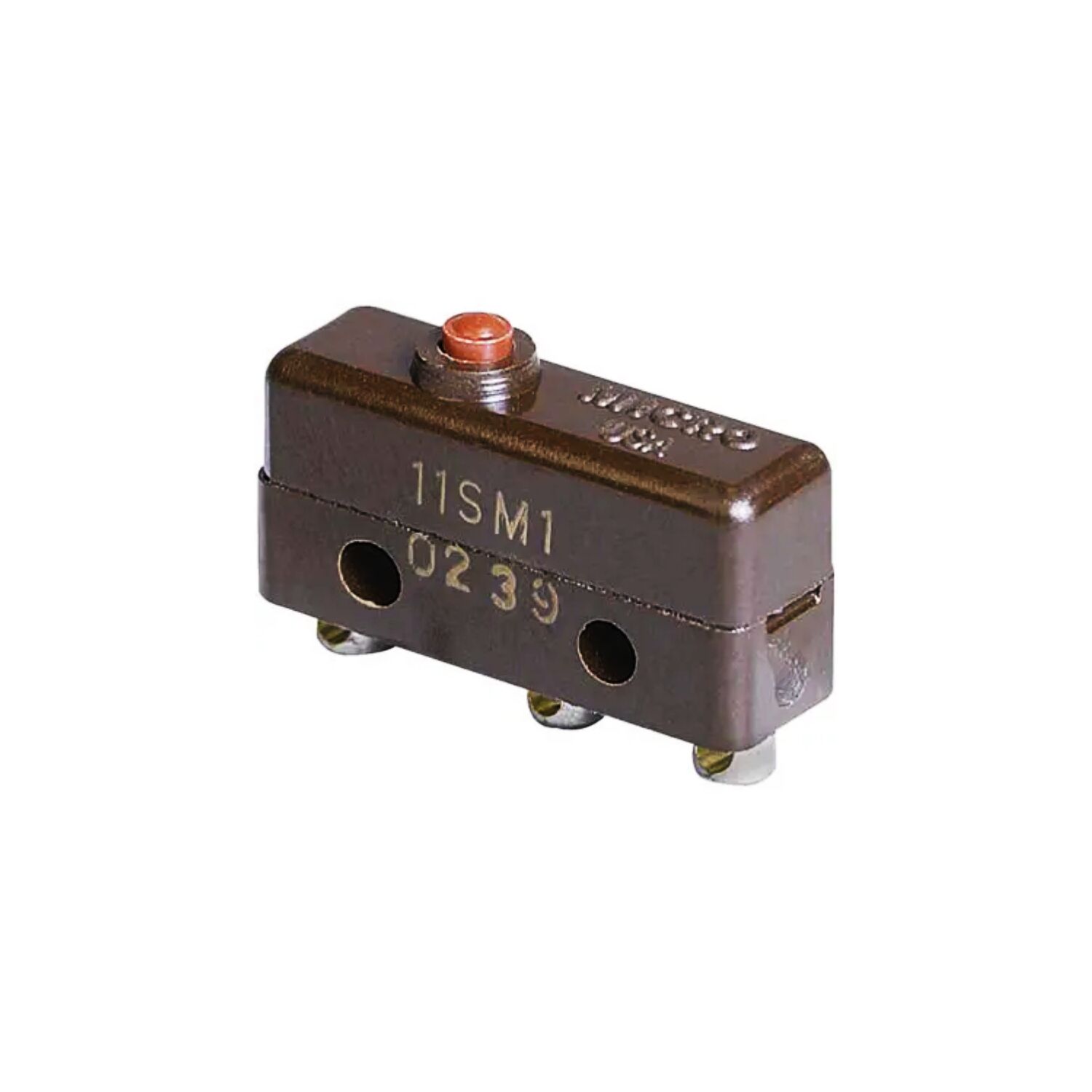

Honeywell Micro Switch 11SM1

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH SM Series delivers consistent performance
within a range of conditions. The MICRO SWITCH SM Series’ small size and light weight are combined with ample electrical capacity, precision operation, and extended life. Featuring high precision and repeatability, the SM Series offers gold contacts for low-energy switching
and gold bifurcated contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SM switch.
The SM switch is available for power-duty switching up to 11 A (Vac) or 1/4 HP (Vac).

FEATURES

• Industry-leading mechanical life of up to 10,000,000
operations
• Selection of actuation, electrical termination, and operating
characteristics along with high-temperature construction
options
• Wide temperature range of -54°C to 204°C [-65°F to 400°F]
• MIL-PRF-8805 qualified listings in a lightweight, small
package
• FAA-PMA approvals for commercial aircraft
• Choice of silver or gold-plated, or gold bifurcated contacts to
handle a variety of electrical load requirements
• UL/CSA, cUL, ENEC, and CE approvals
