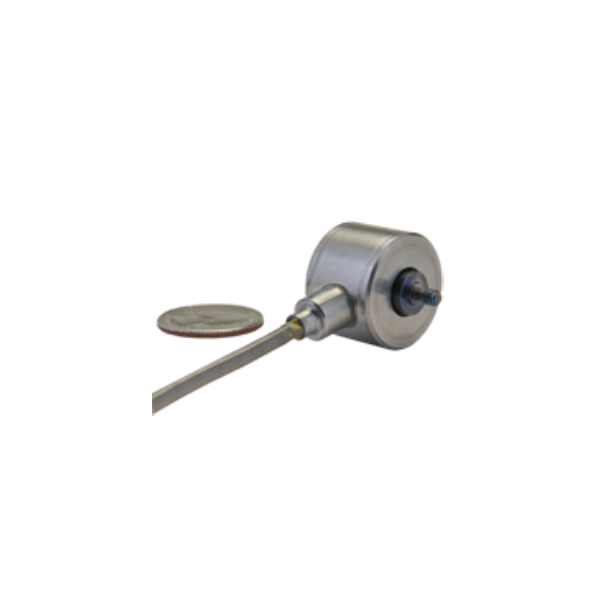

060-1435-03 Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-1435-03
Order Code	AL311AN,1A,2U,4A,6E,15C
Range	250 gm
Accuracy	±0.25 % full scale (50 g to 250 lb), ±0.30 % full scale (500 lb to 10,000 lb)
Output	0.1 mV/V (nominal) (50 g to 150 g), 20 mV/V (nominal) (250 g to 500 g), 1.5 mV/V (nominal) (1,000 g), 2 mV/V (nominal) (5 lb to 10,000 lb)
Temperature (Operating)	-54°C to 121°C [-65°F to 250°F]
Approvals	CE (unamplified)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-1435-03 Honeywell Load Cell

Model 31 low range precision miniature load cells measure
both tension and compression load forces of 50 grams to 500
g. These models are our highest accuracy, rugged miniature
load cells. Model 31’s welded, stainless steel construction is
designed to eliminate or reduce to a minimum, the effects of
off-axis loads. (The internal construction assures excellent longterm stability for ranges 1000 grams and above.) A modification
permits this model to be completely welded for underwater
applications. The Model 31 tension/compression load cell has
male threads attachments. High accuracies of 0.15 % to 0.25 %
full scale are achieved. Each bonded strain gage unit is built of
welded 17-4 PH stainless steel for additional ruggedness.
