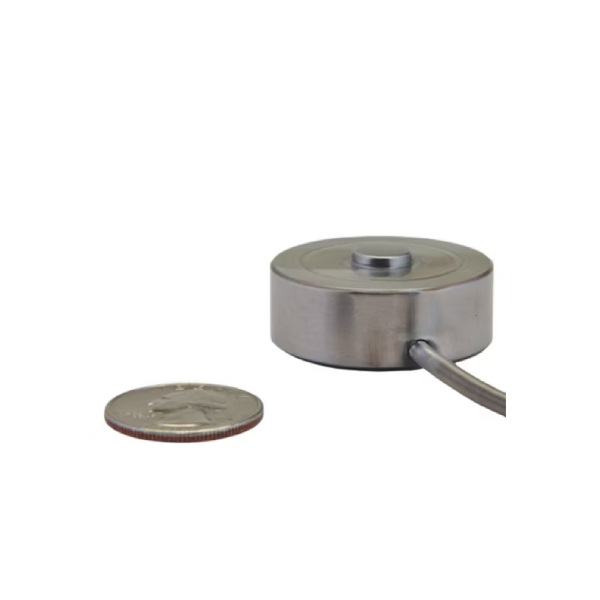

060-0238-07 Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-0238-07
Order Code	AL131CV,1A,2U,6E,15C
Range	1,000 lb
Accuracy	±0.60 % full scale
Output	2 mV/V (nominal)
Temperature (Operating)	-54°C to 121°C [-65°F to 250°F]
Approvals	CE (unamplified)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-0238-07 Honeywell Load Cell

The Model 53 load cells are bonded foil strain gage
transducers designed for cost efficient production and
testing applications (i.e. press calibration). With engineered
compression force measurements up to 200 kN / 50k lb, this
model achieves a maximum non-linearity of 0.5 % full scale.
Precision gaging techniques and a stainless steel construction
provide excellent enhanced stability and reliability under
severe operating conditions. This compression-only load cell
has an integral load button machined as a key part of the
design.
Installation in application is fixed by three tapped holes to
provide secure mounting.
