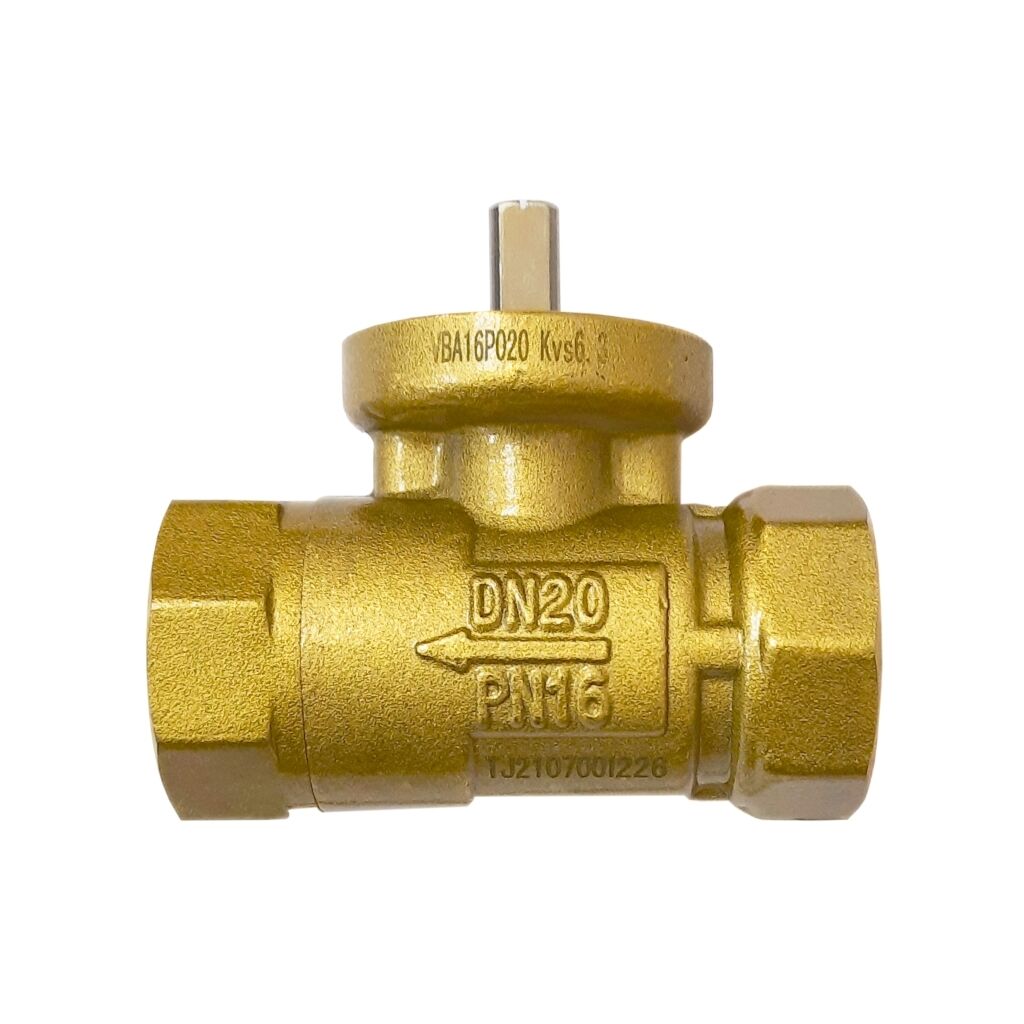

Name: VBA16P020 Honeywell Control Ball Valve
SKU: 61067
Price: 2732.00 INR
Availability: InStock

VBA16P020 Honeywell Control Ball Valve

₹2,732.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	VBA16P020
Size	20mm
Suitable Actuators	MVN7505
Nominal pressure	PN16
Flow characteristics	Equal percentage
Leakage rate	≤0.01% Kvs of (ANSI/FCI 70-2 Class IV)
Threaded connection	BSPP
Medium	Hot and cold water or neutral liquid
Medium temperature	-5…120°C
Flow coefficient Kvs(m³/h)	6.3
Close-off pressure (KPa)	1600
Actuator torque (N•m)	5(MVN..05..)
Rangeability	100:1
Weight (Kg)	0.39

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

VBA16P020 Honeywell

Description :-

Honeywell VBA16P020 series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control

Features:

Equal percentage flow
characteristic
Low leakage rate
Low driving torque
Stainless steel ball and stem
Straight through flow with reduced
flow resistance
High flow capacity

Material

Valve body: Brass HPb59-1
Cap: Brass HPb59-1
Seat: PTFE
Ball: Stainless steel
Stem: Stainless steel
Sealing ring: FPM
