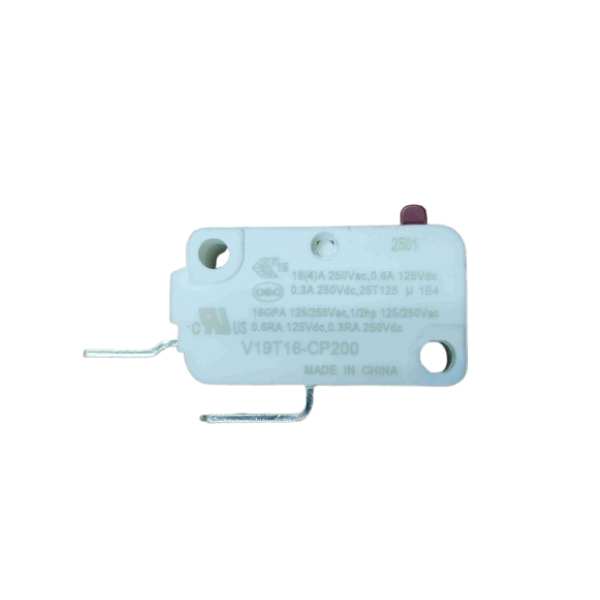

V19T16-CP200 Honeywell Micro Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V19T16-CP200
Circuitry	SPDT, SPNO, SPNC
Operating force	0,15 N to 3,92 N [15 g to 400 g]
Actuators	pin plunger, integral lever options
Agency certification	ENEC, CQC, UL, cUL
Operating temperature (manufacturer specified)	code S: -25°C to 85°C [-13°F to 185°F] code T: -25°C to 125°C [-13°F to 257°F]
Humidity	validated to 240 hours at 40°C [40°F], 95 %RH
Mechanical life (cycles)	1 million cycles @ 60 cycles/minute max
Ingress protection rating	IP40 per IEC 60529
Vibration resistance	10 Hz to 55 Hz, displacement 1,5 mm (peak-to-peak); no contact separation > 1 millisecond
Shock resistance	destruction: 500 m/s2 (50 g max.); switch is functional after test malfunction: 100 m/s2 (10 g max.); no contact separation > 1 millisecond
Switch resistance	50 mW max. for opreating force >50; 100 mW max. for operating force <50
Dielectric strength	1000 Vac (RMS) for 1 minute; leakage current <0.5 mA between open contacts 1500 Vac (RMS) for 1 minute, leakage current <0.5 mA between live parts and ground
Insulation resistance	min. 100 mW (500 Vdc for one minute)
Contact material	cadmium-free silver alloy
Housing material	PBT thermoplastic polyester
Actuating button material	phenolic
Auxiliary actuator material	stainless steel
Common terminal material	brass
NO/NC terminal material	brass
Moving blade	silver-plated brass
Operating speed	0,3 mm/s to 1000 mm/s (pin plunger)
Operating frequency	60 CPM mechanical, 25 CPM electrical
Average unit weight	7.17g
Packaging dimensions/weight	505 mm x 310 mm x 225 mm/1900 g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The V19, Honeywell’s unsealed MICRO SWITCH family provides a cost-conscious switch solution to assist in hitting overall system-level cost and design goals in high volume applications. The V19 switch provides a fully certified, reliable, and repeatable solution over the lifetime of the product. RAST 2.5, 5, and 7 termination styles available for automated manufacturing requirements (white goods).

FEATURES

5 A & 16 A
> 1M mechanical operations
UL/CSA, cUL, ENEC, CQC I
Cadmium-free contacts
RAST 2.5 termination and housing

BENEFITS

Electrical ratings for design flexibility in one industry standard package size
Globally certified for reliable, repeatable actuation for life
Identical system designs for platform applications worldwide
RoHS 3, REACH and CalProp 65 compliant
Enables IDT termination for automated machinery builds on signal-level and control circuits

APPLICATIONS
