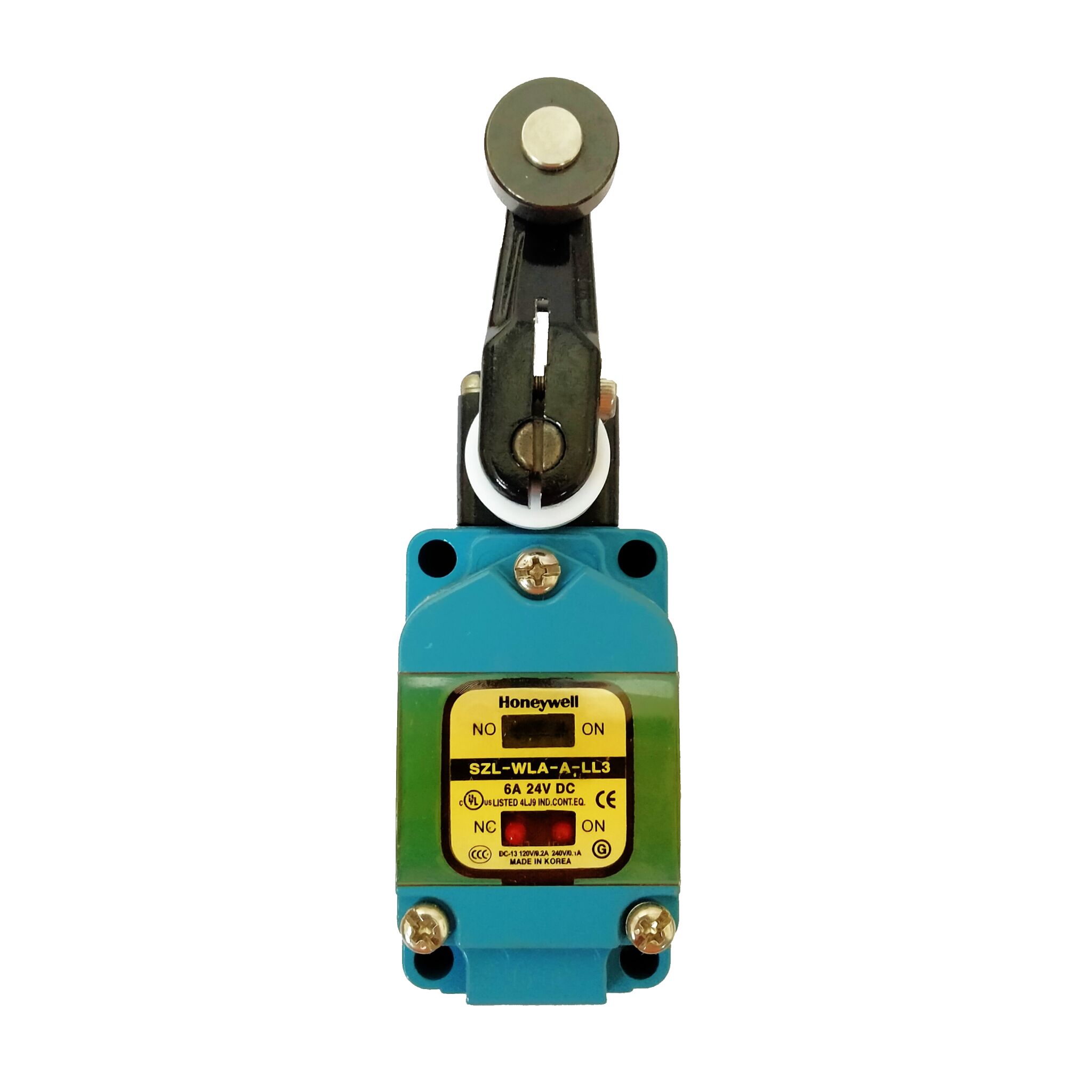

SZL-WLA-A-LL3 Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SZL-WLA-A-LL3
Availability	Asia- Pacific
Operating Force (OF)	9,8 N [2.22 lb] max.
Actuator	Side Rotary – Roller Lever Standard
Lever Type	Roller – Standard
Supply Voltage	24 Vdc max.
Circuitry	SPDT-DB (1 CKT DB)
Housing Material	Aluminum Die-Cast
Shock	30 g max.
Vibration	10 Hz to 50 Hz at double amplitude of 1,5 mm
Sealing	IP67
Expected Mechanical Life	15 Million
Operating Temperature	-10 °C to 80 °C [14 °F to 176 °F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description
Reviews (0)

Description

SZL-WLA-A-LL3 Honeywell Limit Switch general-purpose limit switches are cost-effective switches that may be used in a wide range of applications from general-purpose conveyors to heavy-duty machinery. Rugged and reliable, the Honeywell SZL-WLC-AL3 Limit Switch, and SZL-WL Series switches are specially designed for worldwide use and supported by Honeywell’s vast experience in serving industries around the globe. High-quality product offerings combined with Honeywell’s global sales and service resources make the SZL-WL Series the smart choice for industries whose goal is to minimize plant downtime and reduce overall maintenance costs.
