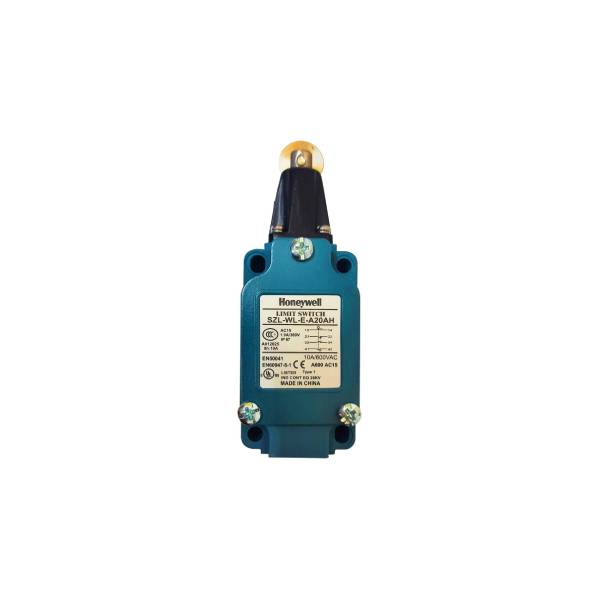

SZL-WL-E-A20AH Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SZL-WL-E-A20AH
Standard	EN50041
Enclosure	Metal
Electrical Rating	AC 15 A600 DC 13 Q300
Contact Type	Snap Action 1NC/1NO
Shock/ Vibration	10g/ 50g
Operating Humidity	<95% RH
Operating Temperature	-25~+120°C
Mechanical life	10,000,000 operations
Operating Speed	0.05mm~2m/s
Operating Frequency	120 ops/min
Contact Resistance	<25mΩ
Degree Of Protection	IP67
Dielectric Strength	2500V
Electrical Life	5 x 10⁵
Conduit	1/2 NPT
Head	80° Rotated Angle
COO	China

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SZL-WL-E-A20AH Honeywell Limit Switch , SZL-WL Series general purpose limit Limit switches are specially designed for world-wide applications and supported by Honeywell global resources for sales and after sales service. Honeywell Limit Switch SZL-WL-A-A01AH series are designed to the latest IEC Standard. EN50041 Limit Switches are available in metal enclosures. Standard szl-wl switch circuit variations include 2 and 3 circuit variations with forced disconnect mechanism. These series includes features to make quick installation easier & safer and are interchangeable with almost all other makes of EN50041 and EN50047 switches. Customer will benefit from Honeywell’s vast experience in serving world industries over many years.
