Description

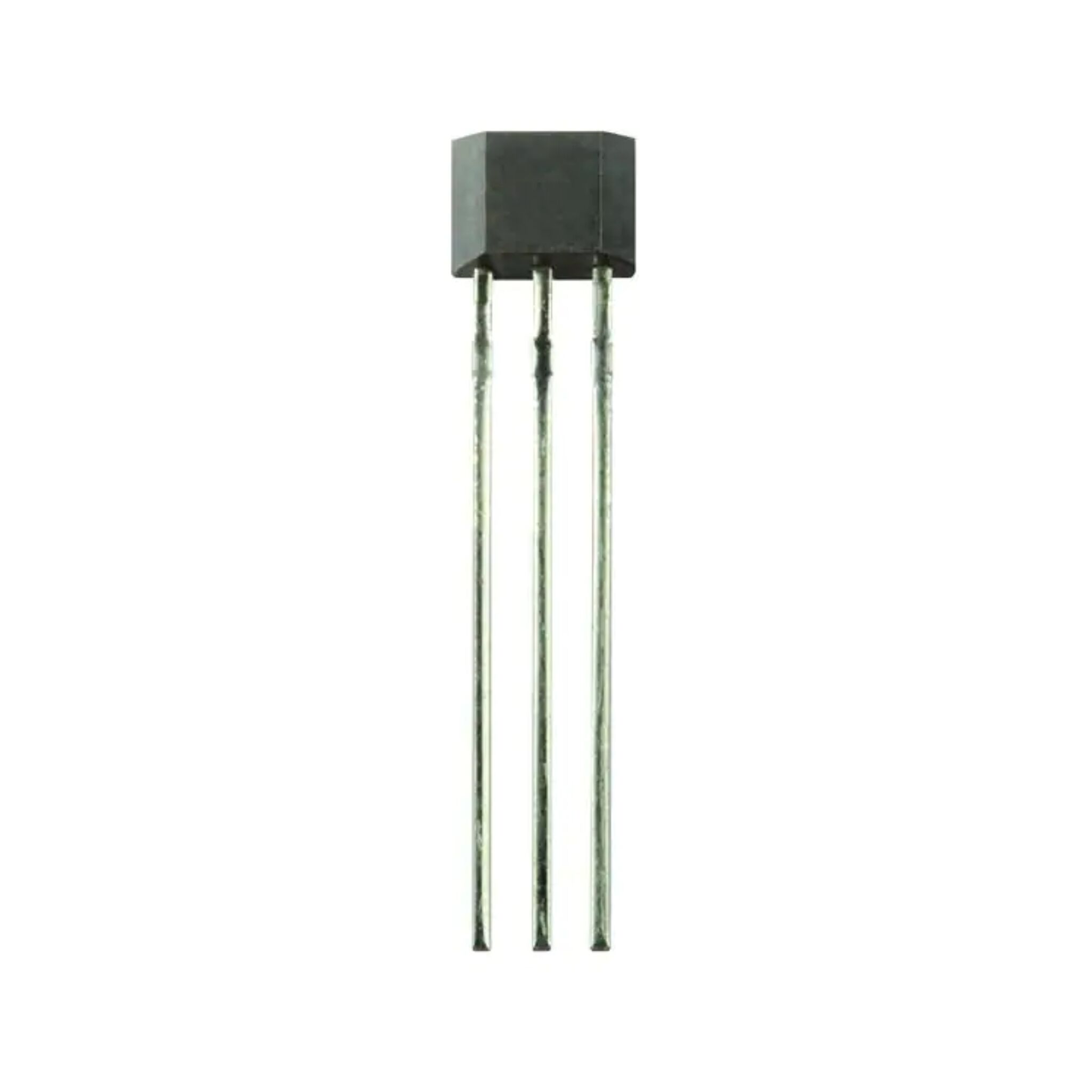

The SS41 Honeywell Hall effect Sensor ,SS41 are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and is designed to respond to alternating North and South poles. A built-in regulator provides enhanced stability of operation over the 4.5 Vdc to 24 Vdc supply voltage range, and the internal circuitry is designed to prevent sensor damage in case the supply voltage polarity is accidentally reversed. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits. Low-cost digital bipolar Hall-effect sensor IC, tested at 25 °C [77 °F] and 125 °C
[257 °F]
FEATURES :
• Small, leaded, flat TO-92-style package allows for a compact PCB layout
• Wide operating voltage range of 4.5 Vdc to 24 Vdc allows these sensors to be used in a variety of applications
• Current consumption of only 5 mA max. at 4.5 Vdc for energy efficiency
• Bipolar magnetics for ring magnet applications with alternating North and South poles
• Robust design: Will operate up to 150 °C [302 °F]
• RoHS-compliant materials meet Directive 2002/95/E
POTENTIAL APPLICATIONS
• Industrial: Speed and RPM (revolutions per minute) sensing,
tachometer, counter pickup, flow-rate sensing, brushless dc
(direct current) motor commutation, motor and fan control,
robotics control
• Transportation: Speed and RPM (revolutions per minute)
sensing, tachometer, counter pickup, motor and fan control,
electric window lift, convertible roof position
• Medical: Motor assemblies, medication dispensing control
