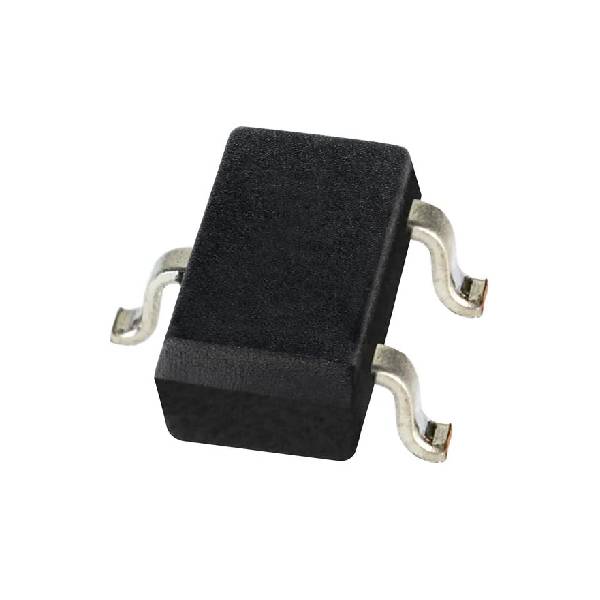

SS360NT Honeywell Hall Effect Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	SS360NT
Supply voltage	24 vdc
Supply current	8 mA
Output leakage current	10 uA
Operating temperature	150 [302] °C [°F]
Storage temperature	165 [329] °C [°F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SS360NT Honeywell Hall Effect Sensor

The SS360NT/SS360ST/SS460S High Sensitivity Bipolar Latching Digital Hall-Effect Sensor ICs are small, sensitive and
versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed
to respond to alternating North and South poles. The SS360NT is turned ON by a North pole while the SS360ST and
SS460S are turned ON by a South pole.
The SS360NT/SS360ST/SS460S offer reliable switching points with a high magnetic sensitivity of 30 G typical (55 G
maximum). This sensor IC does not use chopper stabilization on the Hall element, providing a clean output signal and a
faster latch response time when compared to competitive high sensitivity Hall-effect bipolar latching sensor ICs which do
use chopper stabilization.
