Name: SNDH-T4L-G01 Honeywell Speed and Direction Sensor
SKU: 61820
Price: 7500.00 INR
Availability: InStock

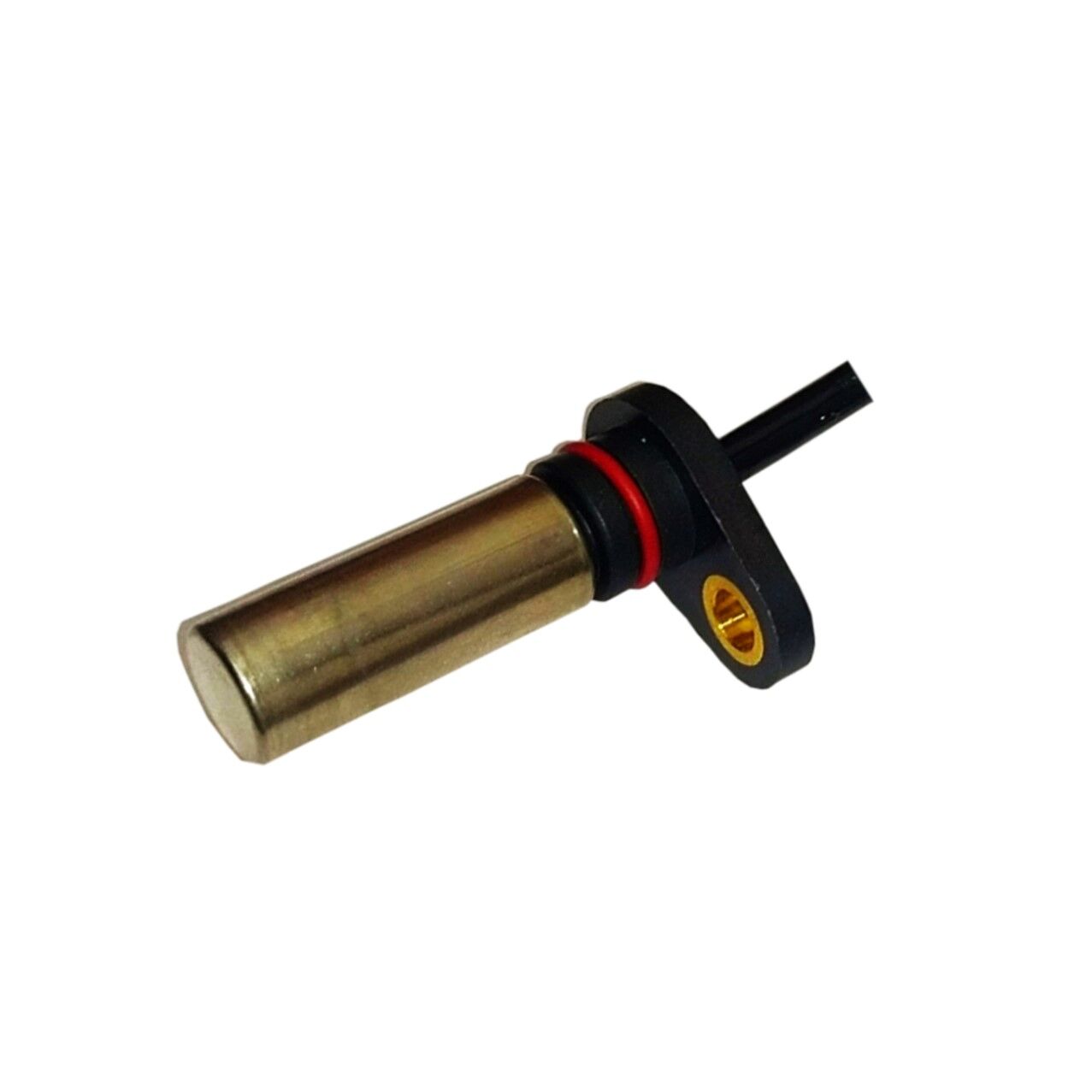

SNDH-T4L-G01 Honeywell Speed and Direction Sensor

₹7,500.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SNDH-T4L-G01
Supply voltage	4.5 V to 18 V
Output signal type	square wave
Output signal duty cycle	50% ±10%
phase shift	90° ±20°
load current	20 mA max.
Rise time	10 µs typ
Fall time	1µs max.
Frequency	1 Hz to 15 kHz
Short circuit protection	80 mA max.
Target tooth width	2,0 mm [0.08 in] (recommended)
Sensing air gap	0 mm to 2,0 mm [0 in to 0.08 in]
Tooth height	>3,0 mm [0.12] (recommended)
Target width	>5,0 mm [0.20] (recommended)
Mechanical shock	50 g
Operating temperature	-40°C to 150°C
Thermal shock	-40°C to 150°C [-40°F to 302°F],
Humidity	95% humidity at 90 °C
Salt fog	96 hr
Thermal saline dunk	5 dunks 105 °C to 0 °C [221 °F to 32 °F] air to liquid, 5% saline
High temperature exposure with power	1000 hr at 150 °C [302 °F]
Vibration	30 g, 10 Hz to 2 kHz
Degree of protection	IP69K
Resistance to fluids	general under-the-hood automotive fluids
Connection Type	Cable with leads, straight exit
Housing Length	45 mm [1.77 in]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SNDH-T4L-G01 Honeywell is a dual differential hall sensor that provides speed and direction information using a quadrature output with signals 90 phase shifted from each other. Target direction is determined by output lead/lag phase shifting. This product is designed for applications where extremely high resolution is required at wide frequency ranges, 1 kHz to 15 kHz, and large air gaps. BiCMOS (bipolar complementary metal-oxide-semiconductor) Hall-effect technology, using advanced digital signal processing for dynamic off-set cancellation, provides enhanced air gap performance and phase shift accuracy over most conditions.
