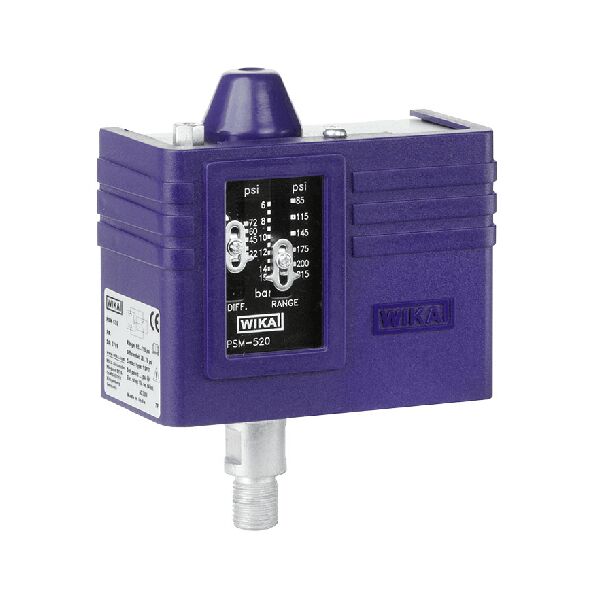

PSM-520-400 Indfos Pressure Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Indfos
Model No.	PSM-520-400
Switch enclosure	Cover: Steel, powder coated Housing: Steel, galvanised
Repeatability	+2% of full scale value
Permissible ambient temperature	-25 °C…+70 °C
Permissible medium temperature	-20 °C…+70 °C
Process connection	1/4″ BSP(F) 1/4″ BSP(M)Optional process connection available on request
Measuring element	Phosphor bronze bellows
Pressure connector	Free cutting steel
Switch contacts	One SPDT contact system
On-off differential	Adjustable
Electrical rating	AC-1: 10A, 230V AC-15: 6A, 230V
Electrical entry	Rubber grommet suitable for 6… 14 mm cable
Ingress protection	IP33
Mounting	Direct, wall
Range	85 … 425
Settable Range	131 … 425
Differential	45 … 115
Max.pressure	610

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PSM-520-400 Indfos Pressure Switch , The model PSM-520 pressure switch is an electro mechanical instrument that senses changes in pressure and provides electrical on-off contact at predetermined pressure values.
The PSM-520 may be used to energise an alarm or directly control the process by cycling pumps, shifting valves etc. In an alarm application, the switch supports valuable equipment by signalling an alarm. In direct control applications, the switch can be linked electrically to other equipment. PSM-520 pressure switches are designed for use with oil, water, air, steam and other non-corrosive pressure media.
They are not suitable for use with refrigerant gases. This pressure switch is cost-effective and used in a wide variety of applications such as pumps, compressors, turbines, lubrication systems and condensers.
