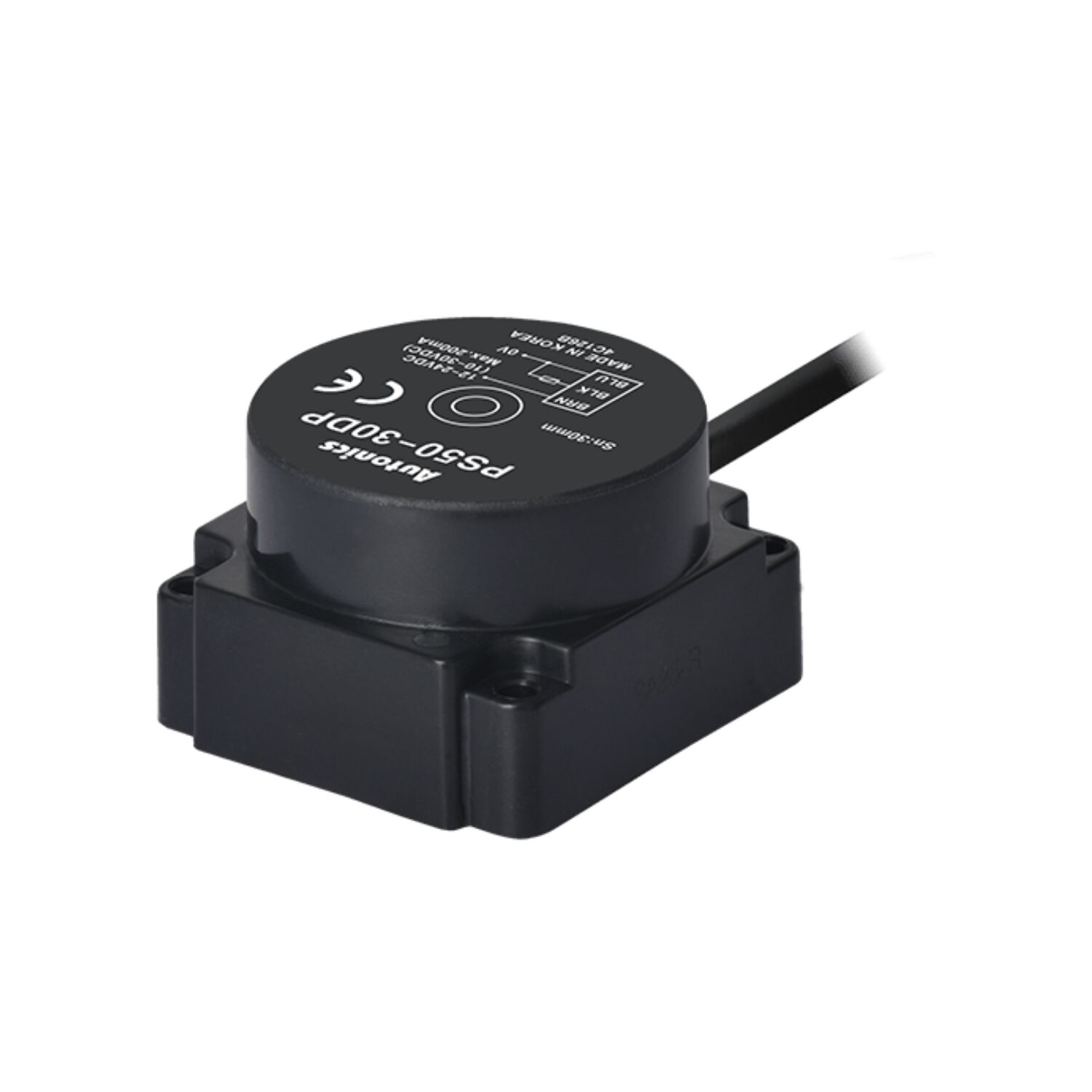

PS50-30DP Autonics Proximity Sensor

Available on order

2,360.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PS50-30DP
Wire type and power DC 3-wire type 12-24VDC
Sensing side size Frame size 50mm
Sensing distance 30mm
Standard sensing target 90×90×1mm(iron)
Response frequency 50Hz
Current specification Current consumption: Max. 10mA
Control output PNP Normally Open
Sensing type Standard type(front sensing type)
Material Heat-resistant ABS
Protection structure IP67(IEC standard)
Approval CE
Environment Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Weight 220g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

PS50-30DP Autonics Proximity Sensor

Features

  1. Improved the noise resistance with dedicated IC
  2. Built-in reverse polarity protection circuit (DC 3-wire type)
  3. Built-in surge protection circuit
  4. Built-in overcurrent protection circuit(DC type)
  5. Long life cycle and high reliability
  6. Red LED status indication
  7. Protection structure IP67(IEC standard)
