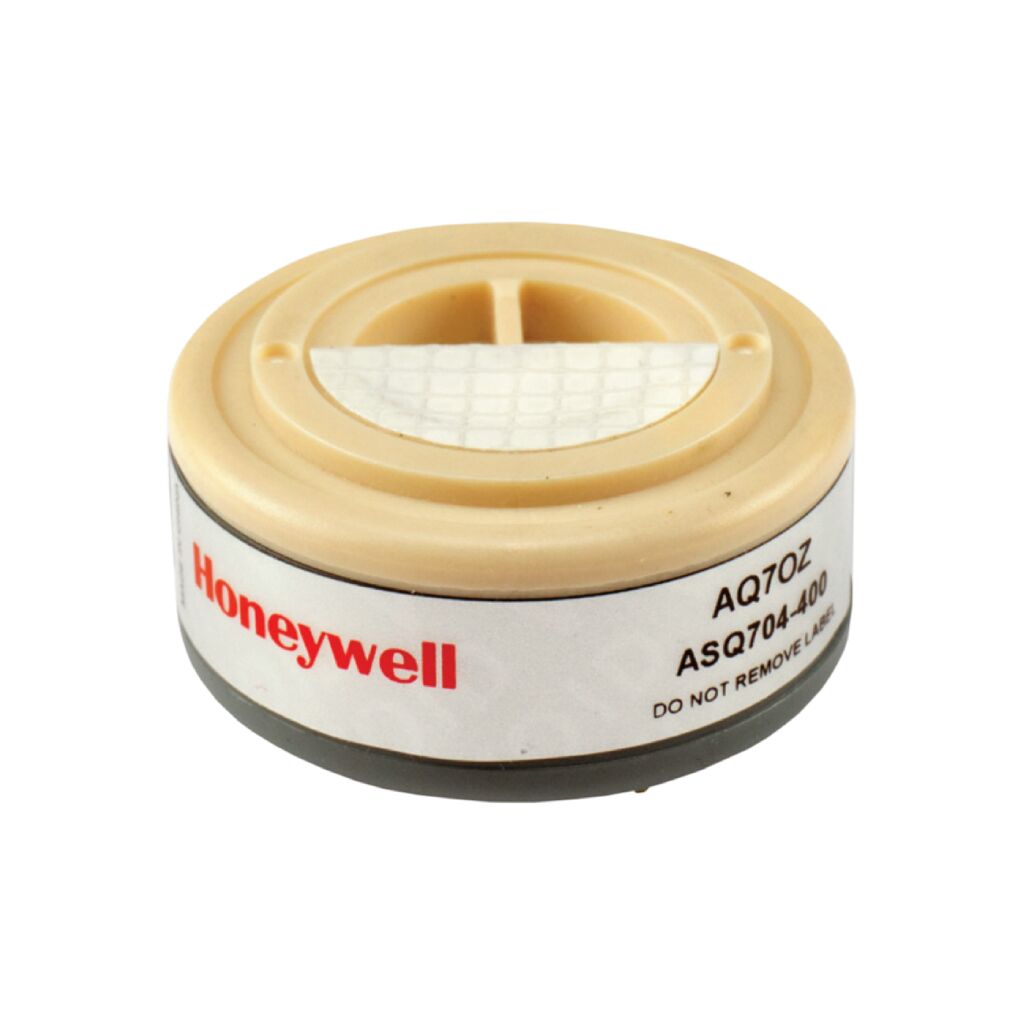

(O3) AQ7OZ Honeywell Ozone Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. AQ7OZ (ASQ704-400)
Technology 4-electrode electrochemical
Measurement Range 0 ppm O3 to 1 ppm O3
Maximum Overload 5 ppm NO3
Onboard Filter None
Sensitivity* 500 nA/ppm ±200 nA/ppm
Response Time (T90) < 120 seconds
Resolution* 5 ppb
Baseline Offset* <±100 nA
Repeatability* < ±5 % of signal
Linearity** linear
Low Detection Limit* 5 ppb
Recommended Load Resistor 68 Ω
Sensor Bias Voltage O mV
Weight 9 g
Outer Plastic Body Material ABS
Contact Material copper with gold coating
Operating Temperature Range -30°C to 50°C (55°C intermittent***)
Operating Humidity Range 15 %RH to 90 %RH non-condensing
Recommended Storage Temperature 0°C to 20° in original sealed container
Typical Applications ambient environmental monitoring
Storage Life 6 months in original sealed container
Expected Operating Life two years in air

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

The (O3) AQ7OZ Honeywell Sensor ,AQ7 Series are for environmental applications; other applications, including industrial safety, may not be suitable.

FEATURES AND BENEFITS

  • High resolution
  • Low detection limit
  • Independent NO2 cross compensation by using 4th electrode
  • High correlation with control station
  • Individual compensation for temperature and cross sensitivity

Poisoning
Gas sensors are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapors is avoided during storage, fitting into instruments, and operation. When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the sensor as the solvent may cause crazing of the plastic.

Cross Sensitivity Table
Whilst AQ7 Series gas sensors are designed to be highly specific to the gas they are intended to measure, they will still respond to some degree to various other gases.
