Model RM Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model RM
Load range	2000 lb to 200000 lb
Linearity 100 lb to 1000 lb	±0.2 % full scale
Hysteresis 100 lb to 1000 lb	±0.2 % full scale
Non-repeatability	± 0.05 % full scale
Operation	Tension
Resolution	Infinite

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

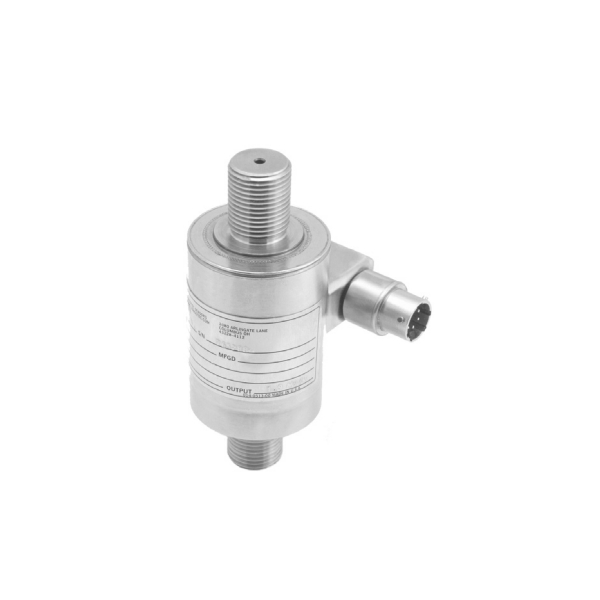

Model RM Honeywell Load Cell

Model RM, with male threads, is a high output rod end load cell
designed to be mounted inline to the load axis to measure tension. The outputs for these load cells are ±5 Vdc or 10 Vdc, or
4 mA to 20 mA (two wire) all calibrated in tension. The mounting thread configurations and the all welded stainless steel
construction make these tension load cells ideal for a variety of
rugged field applications as well as in the laboratory.
The optional high output signal offers resistance to electrical
noise as well as additional signal resolution. Additional options
include an internal buffered shunt calibration circuit for ease of
setup with an associated indicator, and a variety of thread selections, including metric sizes.
