Model 3719 Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 3719
Load range	1200 lb to 300000 lb
Non-linearity – ranges up to 25K lb (67K N)	±3.0 % of rated output
Hysteresis ranges up to 25K lb (67K N)	±5.0 % of rated output
Output @ rated capacity	±2 mV/V to 3.5 mV/V depending on size (nominal)
Operation	Compression
Resolution	Infinite

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model 3719 Honeywell Load Cell

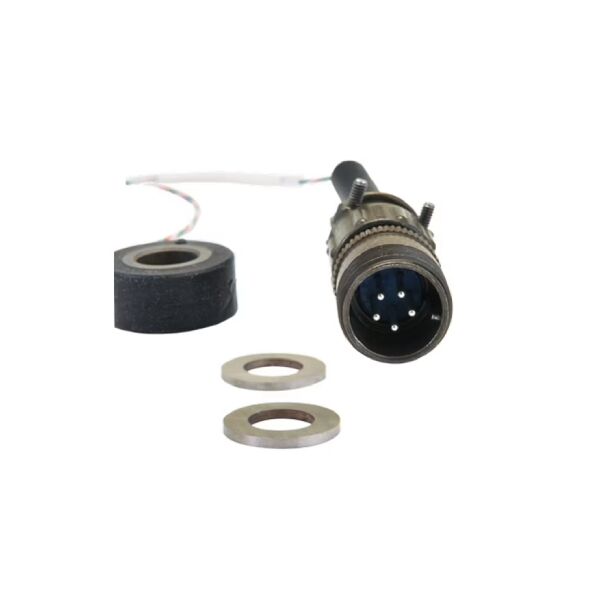

The bolt force sensor is a unique transducer which is essentially
a hollow-compression strain gage load cell. It is designed to be
used with most strain gage indicators. The bolt force sensor is
a three-piece assembly consisting of: 1. a large hardened and
ground flat washer with one side beveled, 2. the sensor, and 3. a
small hardened and ground washer.
The three pieces are assembled for various applications. The
large washer isolates the sensor from the force application tool.
The beveled hole in this washer, which always faces away from
the sensor, provides clearance for the bolt head radius. When
a torque wrench is used, a torque vs. clamp force curve can be
generated. The 3719 bolt force sensor is designed for use in
fastener testing where the compression loading of the sensor
is induced by the tensile loading of the fastener. The bolt force
sensor must be used with the size fastener for which it was
designed.
