Model 34 Honeywell Load Cell

Description

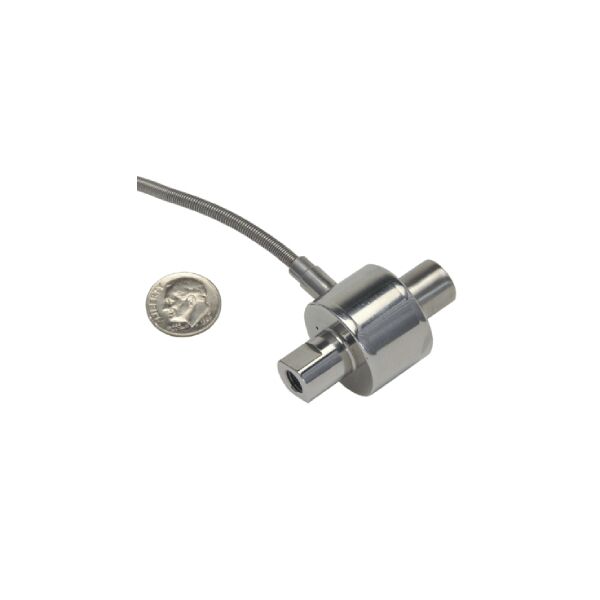

Model 34 Honeywell Load Cell

Model 34 precision miniature load cells measure both tension
and compression load forces of 1000 g to 1000 lb. These
models are our highest accuracy, rugged miniature load cells.
Model 34’s welded, stainless steel construction is designed to
eliminate or reduce to a minimum, the effects of off-axis loads.
(The internal construction assures excellent long-term stability
for ranges 1000 grams and above.) A modification permits this
model to be completely welded for underwater applications.
The Model 34 tension/compression load cell has female threads
attachments. High accuracies of 0.15 % to 0.25 % full scale are
achieved. Each bonded strain gage unit is built of welded 17-4
PH stainless steel for additional ruggedness. All load cells with
ranges from 1 kg to 10 lb have an electrical balance module in
the lead wire (approximately 1 in x .087 in thick). This balance
module does not have to be the same temperature as the
transducer.
