Description

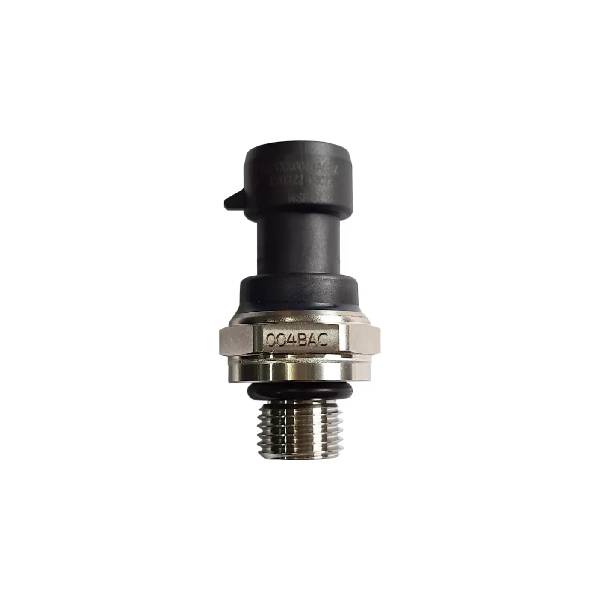

MIPAG1XX015BSAAX Honeywell Pressure Transducers offers a heavy duty and media-isolated pressure transducer in a compact, stainless steel construction for use with a wide range of media including aggressive fluids and water. The Honeywell MIPAG1XX001BACHX Pressure Transducers provides a cost-competitive solution for wide-ranging potential applications in tough environments.
VALUE TO CUSTOMERS
- Total Error Band (TEB) ±0.75 %FSS (Full Scale Span) from -40°C to 125°C for ratiometric output: as a result Provides true measurement performance over the compensated temperature range; small error promotes system uptime and efficiency
- 4 mA to 20 mA output: Supports transmission of output signals over longer distances
- Operates reliably in the presence of electromagnetic fields for instance wireless signals and RF communication and electrical devices as for EMC performance
- Hermetically welded design: Supports almost any media without the use of an internal seal. The sensors are designed to be used in harsh environments which see aggressive media.
DIFFERENTIATION
- Diagnostics: Beneficial in applications where the sensor functionality and the need to know internal or external failure modes is critical.
- Great customer value: Multiple configuration possibilities provide flexibility of use in the application with no up front NRE or tooling charges.
- Durable: Provides the tough environmental capabilities needed, including long-term stability, insulation resistance and dielectric strength, external freeze-thaw resistance for the Metri-Pack 150 versions and EMC performance
FEATURES
- Rugged, stainless steel construction
- Ratiometric output: 0.5 Vdc to 4.5 Vdc
- Current output: 4 mA to 20 mA
- Operating temperature: -40°C to 125°C
- Total Error Band: ±0.75 %FSS to ±1.0 %FSS (-40°C to 125°C) for voltage output
- Industry-leading accuracy: ±0.15 %FSS BFSL for voltage output
- Long term stability: ±0.25 %FSS
- Radiated immunity: 100 V/m
- Drinking water approval: NSF/ANSI/CAN 61
- CE, UKCA, RoHS, REACH compliant
- Mis-wiring protection
POTENTIAL APPLICATIONS
- Industrial: pumps- water, hydraulic fluids
compressors- compressed air
process- food, beverage, oil, gas, steam - HVAC/R: refrigerants (butane, propane, ammonia, CO2, R134A, R407C, R410A, R448A/Solstice® N40, R32 and R1234ze, R1234yf, glycol + water
- Transportation: gasoline, diesel fuel, engine oil, brake fluid, coolants, CNG
- Medical: O2, N2, CO2, N2O, air
