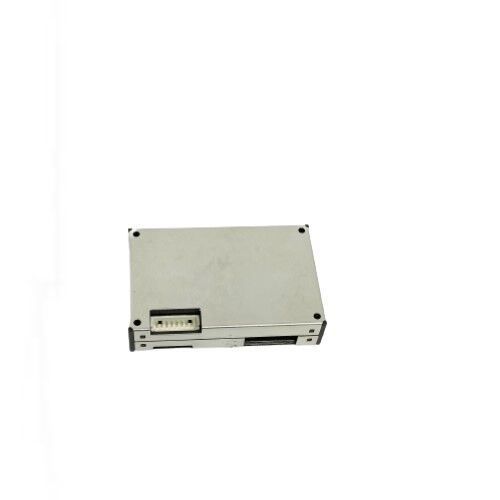

Honeywell Sensor PM 2.5

Available on order

2,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Feature Parameter
Brand Honeywell
Model Number Honeywell PM2.5 Sensor
Working Principle Laser Scattering
Concentration Range (Max) 0-1000μg/m3
Particle Size 0.3-10μm
Accuracy >100 µg/m3, +15%
<100 µg/m3, +15µg/m3
at Ambient Room Conditions
Data update frequency 1s
Calibration Feature Power on Self Calibration
Supply Voltage 5V±0.25V
Standby Current <10mA, at Ambient Room Conditions
Supply Current -50mA, (Typical) at Ambient Room Conditions
Operating Temperature -20-60°C
Operating Humidity 0-95%RH
Storage Temperature -30-70°C
Storage Humidity 0-95%RH
Output Type 12C or UART (User configurable)
PWM(For PM2.5 only)
Output Data 4 Channels
PM2.5, PM10,PM1, PM4,
Concentration unit µg/m3
Output Protocol 12C Default address 0x08
Lifetime² 6 Years
Casing Metal
Dimension 49 X 31.5 X 10.8 mm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell PM 2.5 Sensor

Description

Honeywell Sensor PM 2.5

FEATURES
• Laser-based light scattering particle sensing Concentration range: 0 g/m3 to 1,000 g/m3
• Air inlet & outlet on same side
• Fully calibrated
• Metal casting
• 4 channel direct output to measure PM 1.0, PM 2.5, PM 4.0 & PM 10
• Multiple digital outputs though UART, 12C, & PWM

• Proven EMC performance, and superior accuracy of ±15%-20% for all PM values
• Lowest current consumption of 50 mA
• Self calibration technology to overcome sensor drift incase of dust accumulation
• Ultra sleek design with dimensions of 49 x 31.5 x 10.8 mm



POTENTIAL APPLICATIONS
• HVAC (Commercial & Residential)
• Indoor air quality monitors
• Handheld air quality monitors
• Air purifiers (Commercial & Residential)
• Automotive cabin air purifiers
