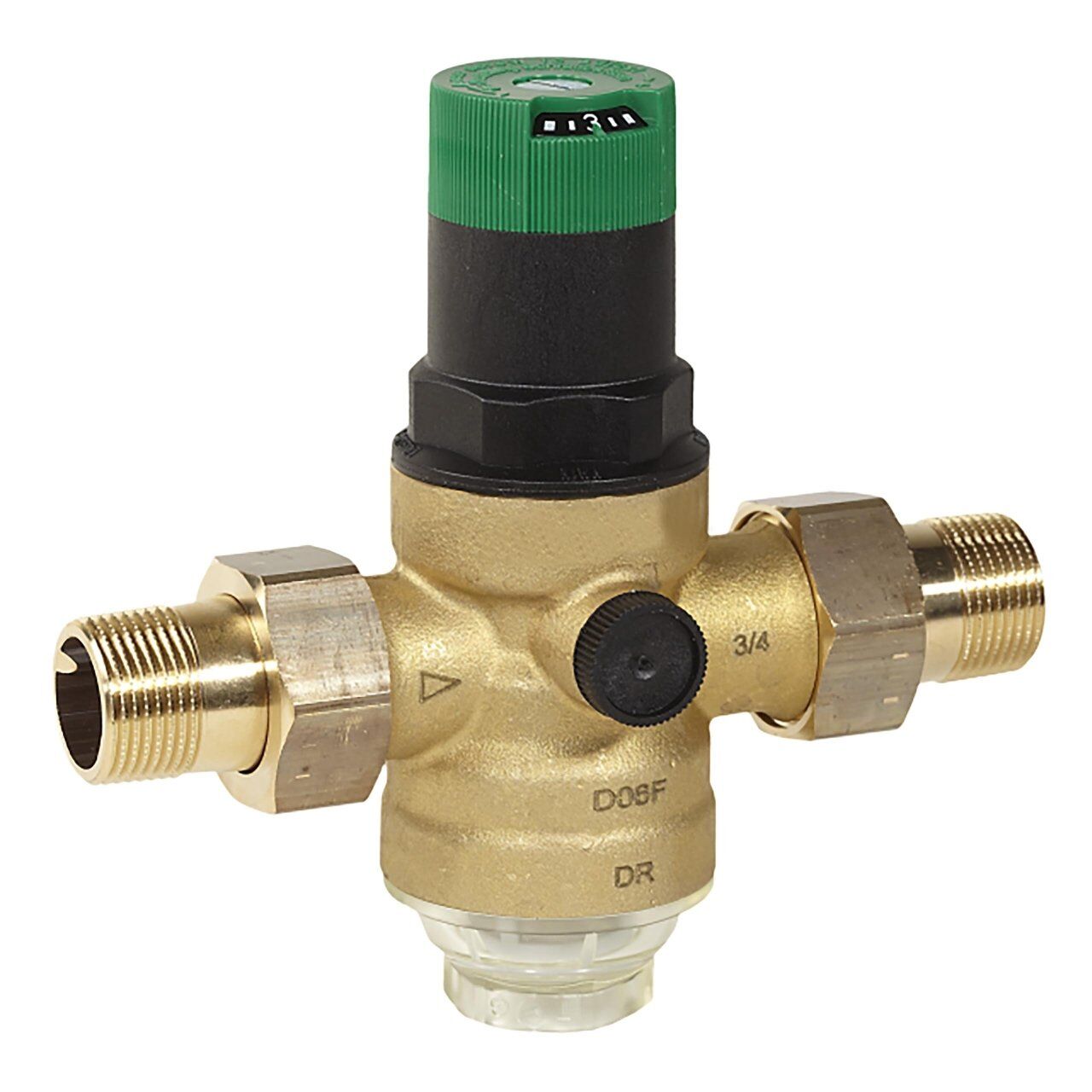

Honeywell Pressure Reducing Valve

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	D06F Series
Medium	Drinking water
Connection sizes	1/2″ – 2″
Nominal sizes	DN15 – DN50
Max. inlet pressure with clear filter bowl	16 bar
Max. inlet pressure with brass filter bow	25 bar
Outlet pressure	1.5 – 6 bar
Preset outlet pressure	3 bar
Min. pressure drop	1 bar
Ambient temperature	5- 55 °C
Ambient relative humidity	25-85 %
Approvals	DVGW & WRAS (up to 23°C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Honeywell Pressure Reducing Valve is fitted in millions of buildings thanks to advantages like high quality design, consistent performance and ease of installation. By balancing and optimising inlet pressure, the Honeywell Pressure Reducing Valve prevents damage to water systems and consequently to buildings. Since it is not sensitive to dirt and is also resistant to corrosion and scaling, the PRV offers reliable and consistent operations over many years.

According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurization damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

Features

• The adjustment spring is not in contact with the potable water & The outlet pressure is set by turning the adjustment knob

• The valve insert is of high quality synthetic material and can be fully exchanged
• Integral fine filter
• Also available without fittings
• Easily retrofittable to convert valve to a reverse-rinsing filter combination
• Can be retrofitted with an inlet non-return valve
• Inlet pressure balancing – fluctuating inlet pressure does not influence outlet pressure
• Light weight

Application

Pressure reducing valves of this type protect installations against excessive pressure from the supply. They are used for household, industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

Honeywell PRV
