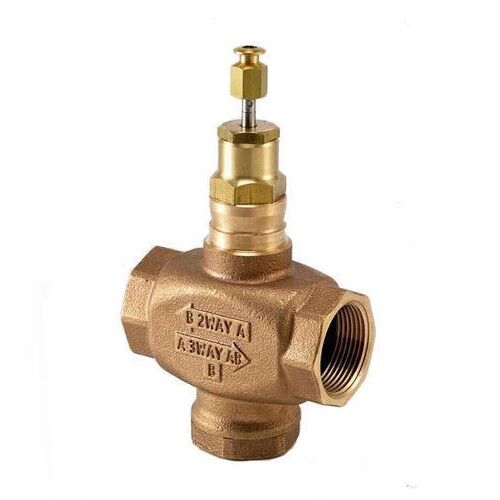

Honeywell Globe Valve (Two-way threaded/ V5011P/ V5011N)

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V5011P/ V5011N
Pipe Connections	Internal BSPT-threaded connections or Internal NPT-threaded connections.
Seat	Stainless steel, replaceable
ANSI Body Class:	150/300 psi.
Approximate Leakage Rate	0.05 percent Cv.
Packing	Spring-loaded, carbon fiber reinforced PTFE V-rings.
Stem	Stainless steel.
Stroke	3/4 in. (20 mm)
Rangeability	50:1 per VDI/VDE 2173.
Pattern	2-way, straight-through
Body Material	Red brass
Pressure Temperature Ratings	Water: 36°F to 248°F, 250 psi

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Honeywell Globe Valve

Features

• Red brass body with NPT-threaded end connections or Bronze body with BSPT-threaded end connections
• Low seat leakage rate
• 50:1 rangeability per VDI/VDE 2173.
• Spring-loaded, self-adjusting packing.
• Accurate positioning to ensure state of the art
temperature control.
• Directly coupled electric and pneumatic actuators for
easy mounting.
• Sizes range from 1/2 in. to 2 in.
• Valve designs provide equal percentage flow
characteristic for water and linear flow characteristic
for steam.
• Stainless steel stem and metal-to-metal seats.
• Repack and rebuild kits for field servicing.

• Stainless steel stem and metal-to metal seats.

V5011P/ V5011N
