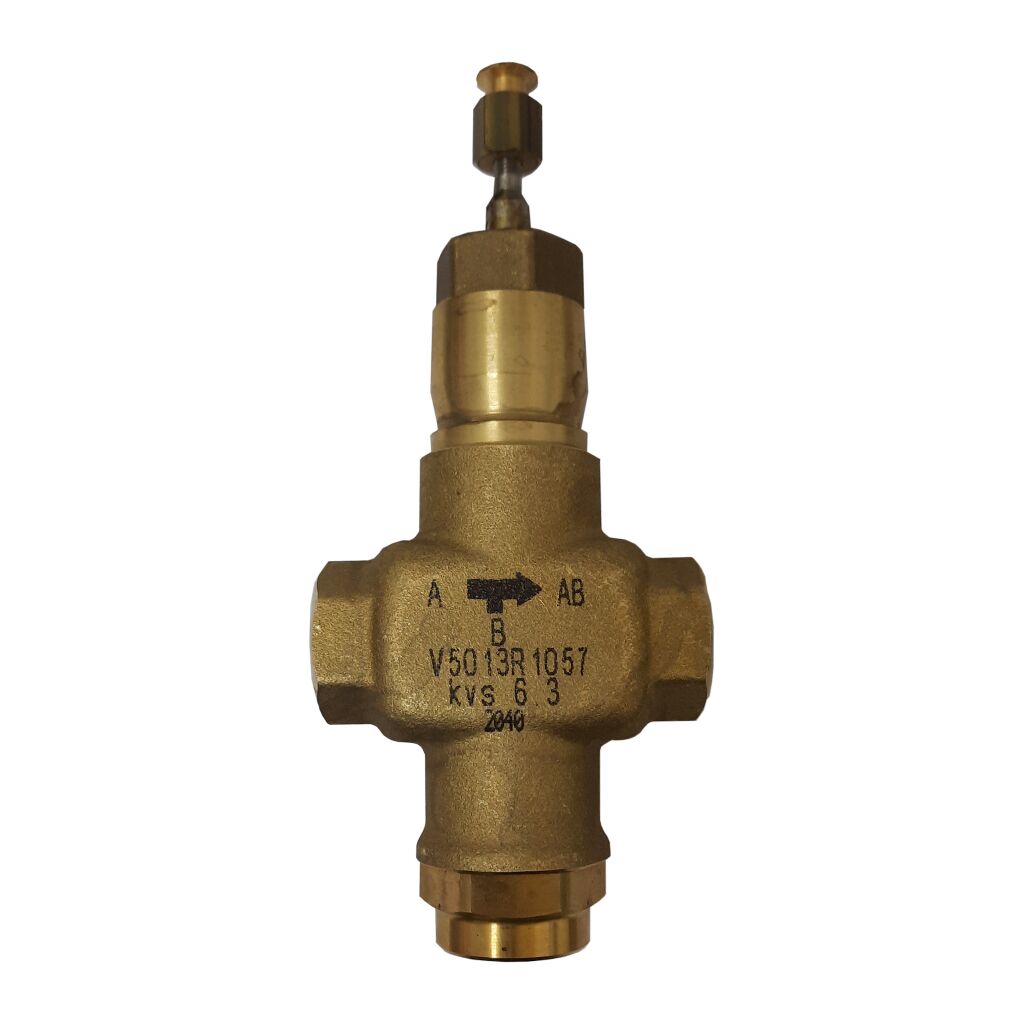

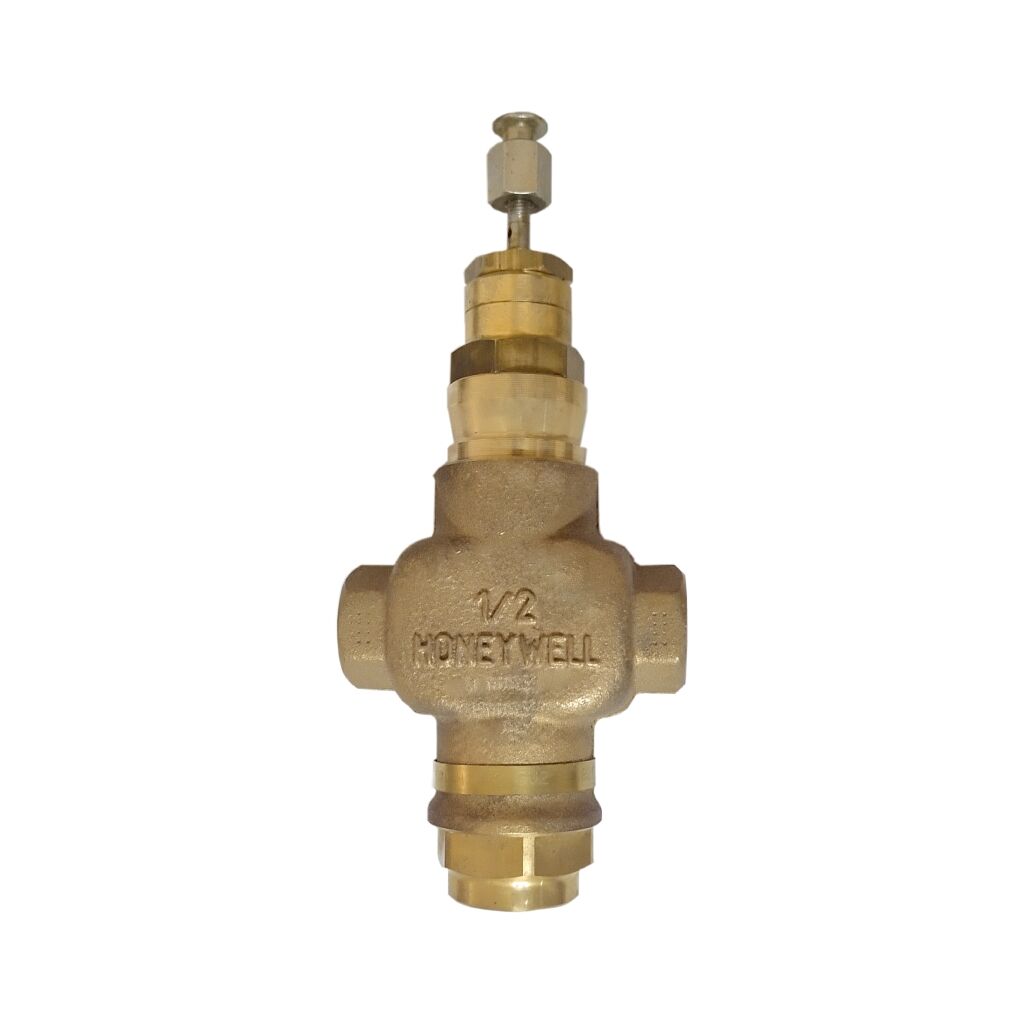

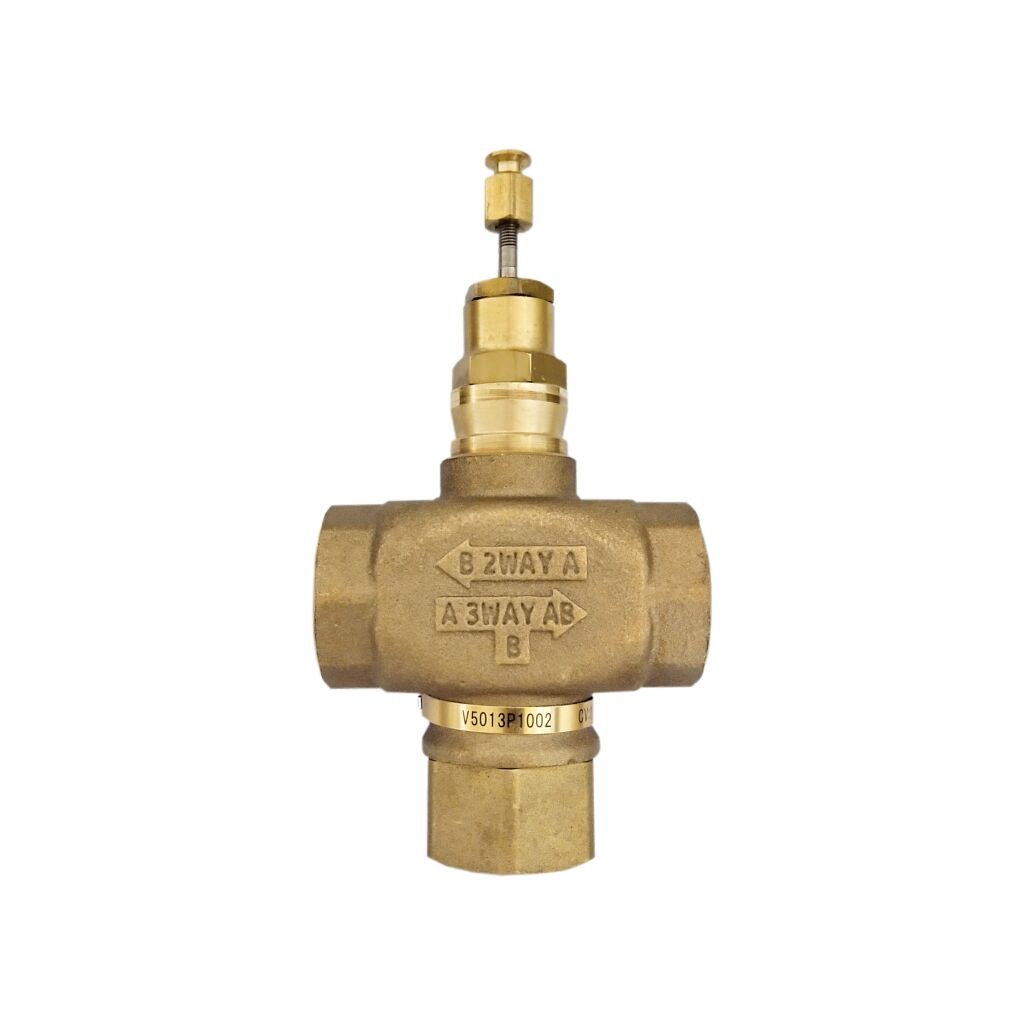

Honeywell Globe Valve V5013P
V5013R

Honeywell Globe Valve (Three-Way Threaded- V5013P/ V5013N/ V5013R)

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. V5013P/ V5013N/ V5013R
Pipe Connections Internal BSPT-threaded connections or Internally-threaded NPT connections.
Plug Brass
ANSI Body Class 300 psi or 150 psi.
Approximate Leakage Rate 0.05 percent Cv
Packing Spring-loaded, carbon fiber reinforced
PTFE V-rings.
Stem  Stainless steel.
Stroke  3/4 in. (20 mm)
Rangeability  50:1 per VDI/VDE 2173.
Pattern 2-way, straight-through
Body Material Red brass
Pressure Temperature
Ratings		 Water: 36°F to 248°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Categories: , Tags:

Description

The V5013P Honeywell Globe Valve is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The Honeywell Globe Valve is used for mixing service to direct flow from one of two inlets to a common outlet in two-position or modulating control systems.

Features

• Red brass body with NPT-threaded end connections.
• Stainless steel stem and brass plug.
• Low seat leakage rate (≤0.05 percent Cv).
• Spring-loaded, self-adjusting packing.
• 50:1 rangeability per VDI/VDE 2173.
• Constant total flow throughout full stem travel.
• Accurate positioning to ensure state of the art temperature control.
• Sizes range from 1/2 in. to 2 in.
• Suitable for pneumatic or electric/electronic actuation.
• Repack and rebuild kits available for field servicing.

V5013P/ V5013N
