Name: EM-0090 Honeywell Actuator
SKU: 59310
Price: 34500.00 INR
Availability: OutOfStock

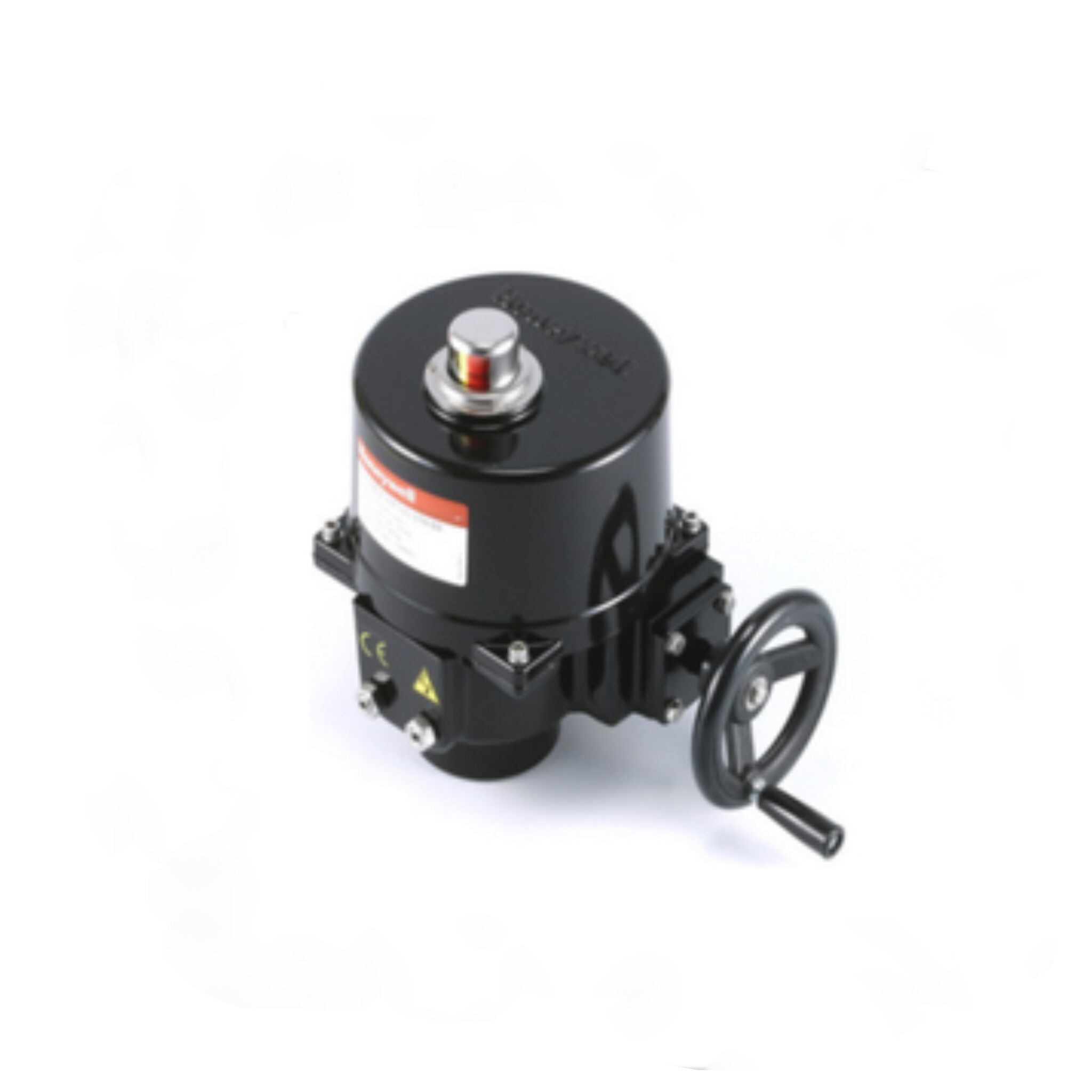

EM-0090 Honeywell Actuator

Available on order

₹34,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	EM-0090
Power Supply	220Vac, 50/60 Hz
Travel Angle	90 Deg.C ± 5 Deg.C
Feedback	2 Aux Switches
Enclosure	IP67 Waterproof
Ambient Temperature	-30℃ to +65℃
Indicator	Continuous Position Indicator
Worm Gear	Permanently lubricated and self locking
Space Heater	15W 220V Anti-condensation
Material	Aluminum Alloy
Stall Protection	Built-in thermal protection Cut off at 125 ± 5℃ Reset at 95 ± 5℃
Max Torque (nm)	90
Speed	0.86
Run time at 60 Hz	17.5
Power Consumption	25 W
Manual Override	Hand-Wheel
Weight	2 Kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The EM-0090 Honeywell Actuator , BSBFW Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications. The Honeywell EM-0090 Actuator, BSBFW series is equipped with standard On-Off control quarter-turn electric actuator. The BSBFW series can also provide feedback output signal: Dry contact for On-Off version

FEATURES :-
• Wide size range (DN 50…DN500) for PN16 type
• For On-Off Control
• Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
• Irreversible worm gear.
• Visual mechanical position indicator for accurate visual reference of valve position.
• Anti-condensation heater and 2 aux. limit switches on standard model
• Enclosure IP67
