DC1020CT

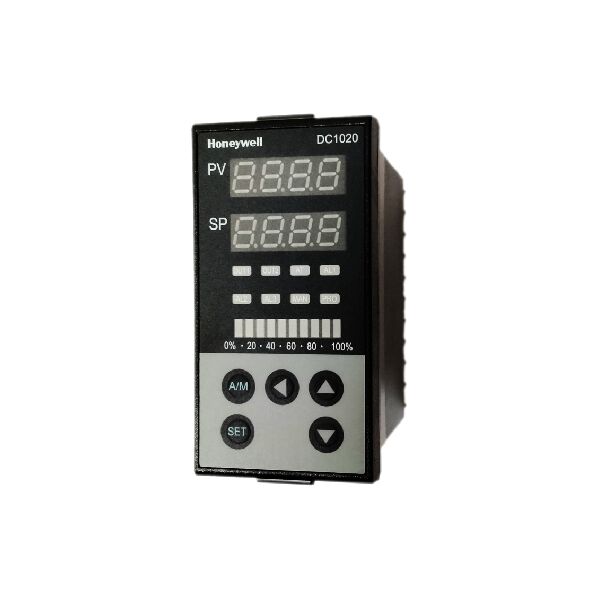

DC1020CT-102-000-E Honeywell PID Temperature Controller

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. DC1020CT-102-000-E
Input Sampling Time 500 ms
Input Resolution 14 bit (each)
PV/SP Indication 4-digit, 7 segment display
Indication Accuracy 0.5%FS
Proportional Band ( P ) 0~200% (On/Off action at P=0)
Integral Time ( I ) 0~3600 sec (PD action at I=0)
Derivative Time ( D ) 0~900 sec (PI action at D=0)
Cycle Time 0~150 sec (4~20mA=0, SSR=1, Relay=10)
Dead Band Time 0~1000 sec (dead time compensation)
Relay Output Electromechanical relay
SPDT contacts
3A/240Vac
Static relay driver output Voltage Pulse, 20VDC/20mA

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell DC1010CL-101-000-E PID Temperature Controller

Categories: , Tags:

Description

The DC1020CT-102-000-E Honeywell PID Temperature Controller , DC1000 Series are microprocessor based controllers designed with a high degree of functionality and reliability at a competitive price. Honeywell DC1020CL-302-000-E Temperature Controller are available in different formats: 48×48 (1/16 DIN), 48×96 (1/8 DIN), 72×72  (3/16 DIN), 96×96 (1/4 DIN). This controller series is ideal for the control of temperature, humidity, pressure, flow etc.
in a variety of applications including:

  • Plastic Processing
  • Package Machinery
  • Painting and coating
  • Semiconductor packaging / Testing
  • Dryers

Features

  • Easy to Configure
  • Various Control Algorithm
  • Auto-Tuning Capability
  • Dual Display and Bar graph
  • Setpoint Programming
  • Extended Alarm Capability
  • Communications (RS232 or RS485 (with ASC II & Modbus RTU Protocol)
  • IP65 Front Face Protection
  • Remote Setpoint Capability
  • Manual & Automatic Modes
  • Global Approvals – CE & cUL
  • Parameter Lock
