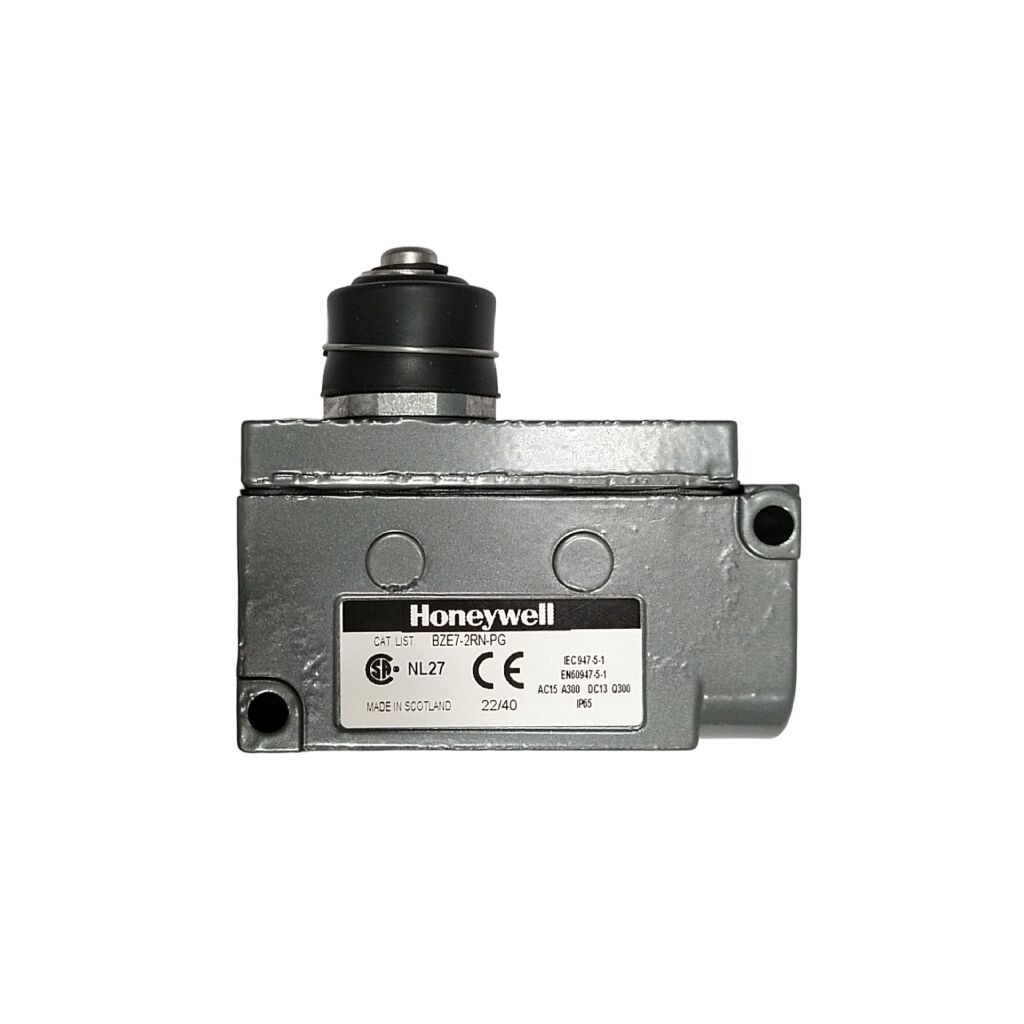

BZE7-2RN-PG Honeywell Limit Switch

Description

Honeywell BZE7-2RN-PG Limit Switch is designed for various indoor and outdoor applications. Typical applications include equipment for commercial, industrial, and transportation industries. The electrostatic applied epoxy coating to the aluminum housings enhances the product’s durability in most applications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has a reliable snap-spring mechanism with more than 60 years of proven service.

The sealed (plungers with boots)  Limit Switch is preferred for applications where there could be exposure to liquid and/or particulate environments. The unsealed E7/V7 Series are ideal for applications where there will not be exposure to liquid or dust environments. The compact size of the limit switch permits installation where there is limited space available on equipment.

The SPDT (Single Pole Double Throw)Honeywell BZE7-2RN-PG Limit Switch is certified to CE, UKCA and CSA for worldwide applications. While the DPDT (Double Pole Double Throw) E7/E7S/V7/ E9 Series of catalog listings are certified
to CE and UKCA for many applications.

FEATURES  :

1. MICRO SWITCH E7/V7 Series switches feature an electrostatic epoxy coated zinc housing for durability in most indoor and outdoor environments, and a wide variety of actuators to solve most application requirements.
2. Designed with MICRO SWITCH BZ or DT basic switches to deliver precise switching of electrical and mechanical operating characteristics
3. Side and flange mounting options
4. Small footprint with easy access to wiring terminals
5. Multiple connectivity options: two different conduit offerings with single or double conduits
6. BZE7, BZE7S, BZV7, and BZE9 Series with SPDT contacts are certified to CE, UKCA and CSA for worldwide applications. The DTE7 and DTE7S Series with DPDT contacts are certified to CE and UKCA for many uses

POTENTIAL APPLICATIONS :

Industrial

1. Escalator obstruction detection – Roller actuator mounted behind skirt on escalators, if activated, power to the escalator is cut to avoid injury
2. Air curtain – A component in a circuit for control of air stream
3. Door or gate position – Can provide a signal when a door or gate is opened or closed
4. Commercial food processing – For large scale food preparation, to ensure all features are in the desired operating position

Transportation

• Traffic barrier signaling – If traffic barrier lowers, signal lights can be activated
