₹2,960.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BM3M-TDT |
| Sensing Type | Transmitted beam |
| Sensing Distance | 3m |
| Sensing Target | Opaque material of min. Ø8mm |
| Response time | Max. 1ms |
| Power Supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| current Consumption | Max. 45mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Dark ON |
| Control output | PNP open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Protection structure | IP64 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Approval | CE |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories | Fixing bracket, Bolts, Nuts |
| Weight | Approx. 170g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

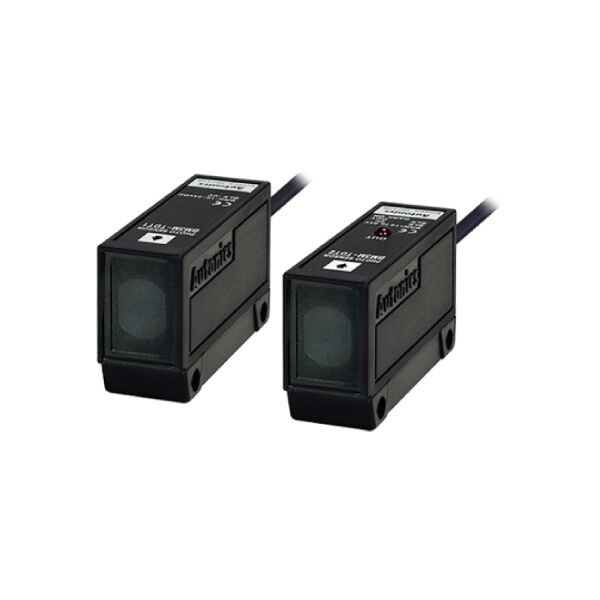

BM3M-TDT Autonics Photoelectric Sensor
