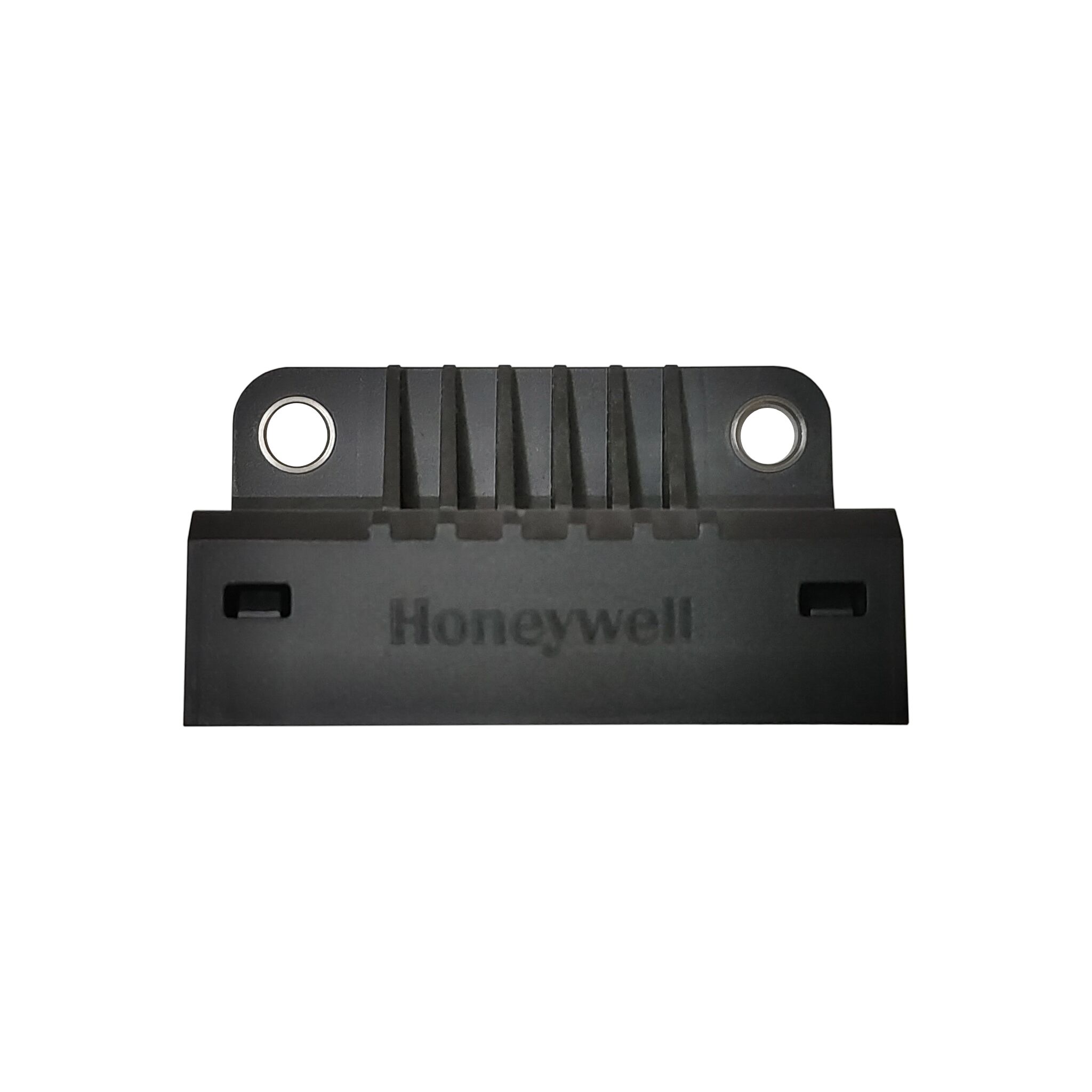

Honeywell BAS6C-X05 Aerosol Sensor

BAS6C-X05 Honeywell Aerosol Sensor

Available on order

Product Details:

Product Description
Brand Honeywell
Model No BAS6C-X05
Operating temperature range -40°C to 85°C
Accuracy ≤±15% at threshold concentration of 5000 µg/m³
Response time ≤1 s
Supply voltage 8 – 16 Vdc
Type Aerosol
Number of Pins six pins
Output Signal CAN
Reserved Product Number MCU1 version

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Category: Tags:

Description

BAS6C-X05 Honeywell Aerosol Sensor is automotive-grade aerosol sensors that use the principle of light scattering to detect and report thermal runaway events in lithium-ion battery packs. It detects the presence and concentration of aerosols such as smoke, liquid and debris that are early indicators of a thermal runaway event in an enclosed lithium-ion battery pack. The BAS Series measures and reports aerosol concentration from 200 µg/m³ to 10000 µg/m³ using CAN (Controller Area Network) communication protocol. They have a factory-programmed, thermal runaway warning threshold of 5000 µg/m³. These products are designed to meet higher quality and reliability requirements. The BAS series is RoHS compliant.

FEATURES of Honeywell BAS6C-X05 Aerosol Sensor

  1. High accuracy and low temperature drift
  2. CAN communication protocol
  3. Wake-up output and request input for high reliability system integration
  4. Aerosol threshold value of 5000 µg/m³ allows early detection of thermal runaway events
