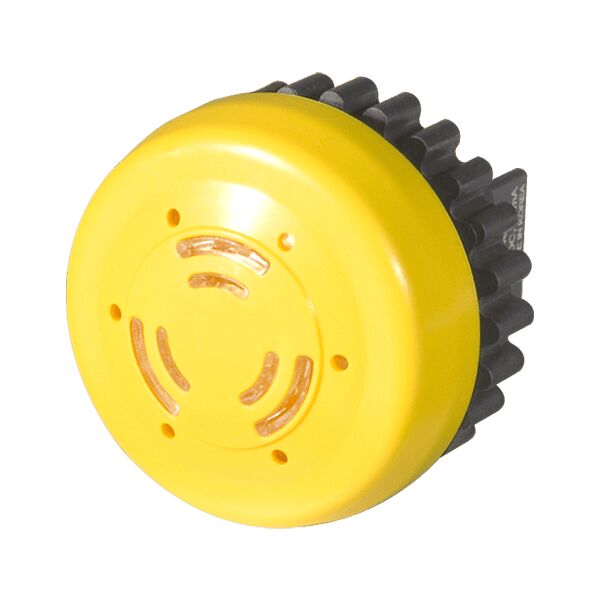

Autonics Buzzer B2PB-B1D

B2PB-B1D Autonics Buzzer

Available on order

₹525.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model Number

B2PB-B1D
Power supply 12-24VDC
Power consumption Max. 0.6W
Sound pressure Approx. 98±8dB(0.1m)
Sound type Continuous sound/Intermittent sound
Mounting hole Ø22/25mm compatible
Operation indicator Green LED
Protection structure IP65(front panel)
Material Body Polyamide 6
Material Cap Polycarbonate
Environment Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 305g(approx. 18g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 1HM1 Hermetically Sealed Basic Micro Switch

Category: Tag:

Description

B2PB-B1D  Autonics Buzzer



  • It is rated at power supply 24VDC. (Sound pressure may be decreased when using 12VDC.)
  • The weight is for 10 units including packaging. The weight in parenthesis is for a single unit.
  • Environment resistance is rated no freezing or condensation.
