₹1,458.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRT18-5DO |
| Wire Type and Power | DC 2-wire type 12-24VDC |
| Sensing side diameter | M18 |
| Sensing Distance | 5mm |
| Installation | Shield(Flush) |
| Standard Sensing Target | 18×18×1mm(iron) |
| Response Frequency | 500Hz |
| Current Specification | Leakage current: Max. 0.6mA |
| Control Output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection Structure | IP67 |
| Body Length | Standard type |
| Environment Ambient Temperature | -25 to 70℃ |
| Environment Ambient Humidity | 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual Voltage | Max. 3.5V |
| Power Supply | 24 VDC |
| Vibration | 1mm amplitude |
| Dielectric Strength | 1500 VAC 50/60 Hz for 1 min |
| Shock | 500 m/s² |
| Weight | Approx. 63g(approx. 72g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

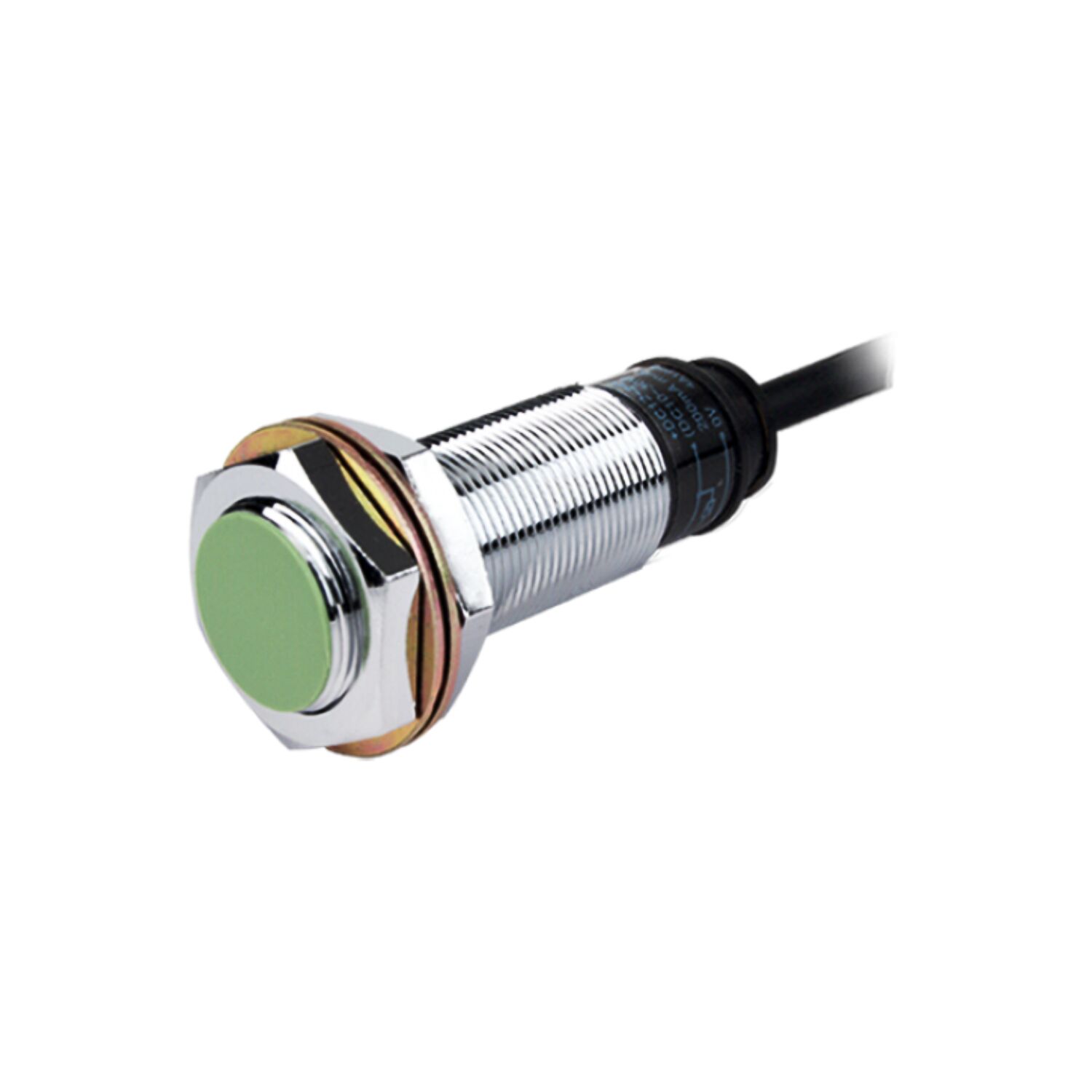

PRT18-5DO Autonics Proximity Sensor
