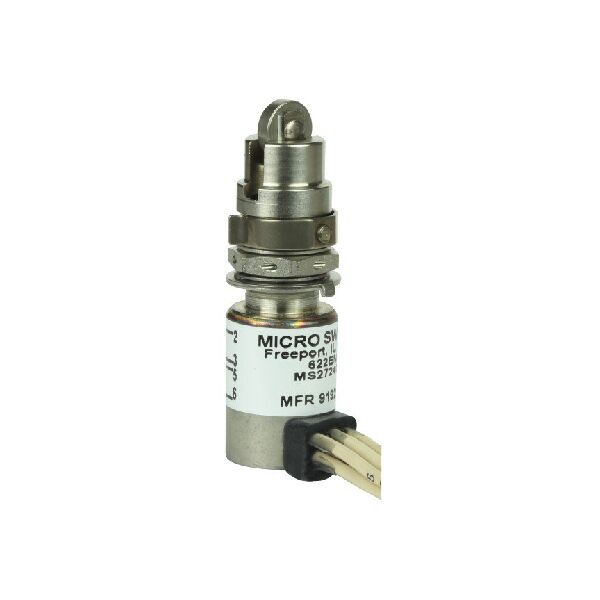

Name: 622HE1-6 Honeywell Hermetically Sealed Micro Switches
SKU: 65021
Price: 116594.00 INR
Availability: OutOfStock

622HE1-6 Honeywell Hermetically Sealed Micro Switches

Available on order

₹116,594.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	622HE1-6
Type	Hermetically Sealed
Actuator Style	Top Roller Plunger
Device Type	Linear
Switch Configuration	N.O./N.C.
Pole Throw Configuration	DPDT
Maximum Current Rating (A)	7@28VDC
Operating Force (N)	53.38
Release Force (N)	13.35(Min)
Mounting	Panel Mount
Termination Style	Wire Lead
Maximum Pre-Travel	1.02mm
Minimum Over-Travel	3.18mm
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Length (mm)	17.48
Product Height (mm)	60.83

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

622HE1-6 Honeywell Micro Switches

True hermetic sealing with metal-to-metal, glass-to-metal constuction assures maximum seal effectiveness for exceptionally long periods of time despite continuous changes in atmospheric pressures and temperatures.1HE1-6 is directly interchangeable with the 1EN1-6 (MS24331-1) environmentproof switches, and has the same operating characteristics, physical dimensions, and electrical capacity. This switch features corrosion resistance, small size, one hole wire-lock mounting, and MILW-22759/7 lead wire. Most EN type actuators can be provided on HE switches. Contact MICRO SWITCHfor more information.
