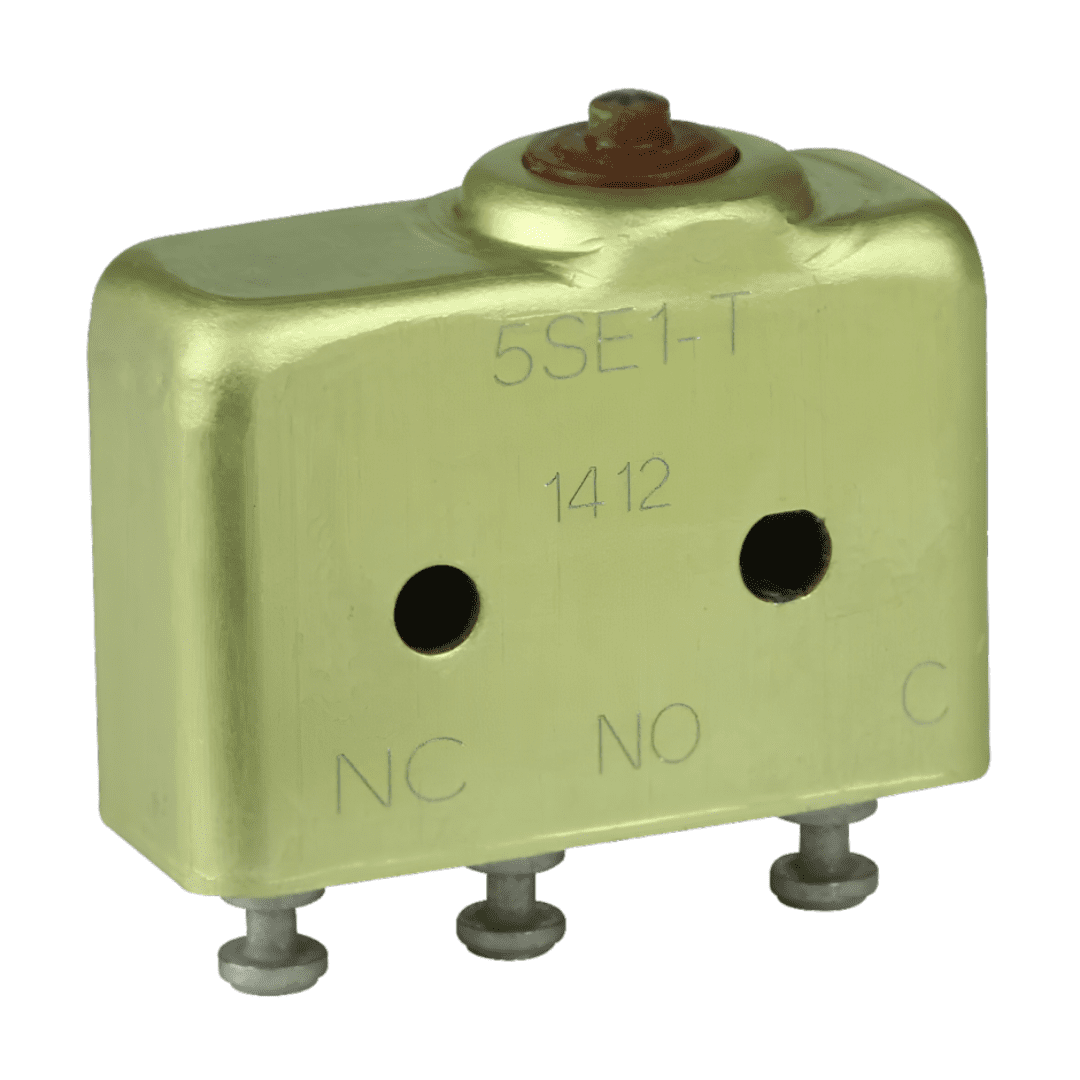

5SE1-T Honeywell Micro Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model no. 5SE1-T
Circuitry SPST (NC), SPST (NO), SPDT
Housing material Anodized aluminum
Electrical termination epoxy sealed leadwire, (0,52 mm² [20 awg]) or
epoxy sealed solder pins
Electrical rating 5 A @ 30 Vdc; 5 A @ 250 Vac, 60 Hz
Sealing Symbol 3 “watertight” per MIL-PRF-8805
Temperature range -53 °C to 105 °C [-65 °F to 221 °F] (standard)
-26 °C to 85 °C [-15 °F to 185 °F] (5SE Series)
Vibration Grade 2 (15 G) per MIL-PRF-8805
Approvals UL, CSA
Actuators Top pin plunger, optional auxiliary actuators available



Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

5SE1-T HONEYWELL MICRO SWITCH™ SE Series Miniature Sealed Basic Switches

Honeywell SE miniature sealed basic switches are designed for precise and reliable position indication of critical applications on aircraft and military systems. The applications range from military and commercial aircraft and helicopters to military land vehicles (track and wheeled vehicles). These switches are also suitable for other commercial and industrial applications where a degree of environmental sealing is required. The environmentally sealed SE Series is designed for demanding applications where water and/or particulate contaminant is present along with the potential for a wide range of temperatures. The SE Series incorporates the Honeywell time-proven are qualified satisfying the requirements where a military qualified or compliant switch is required.
