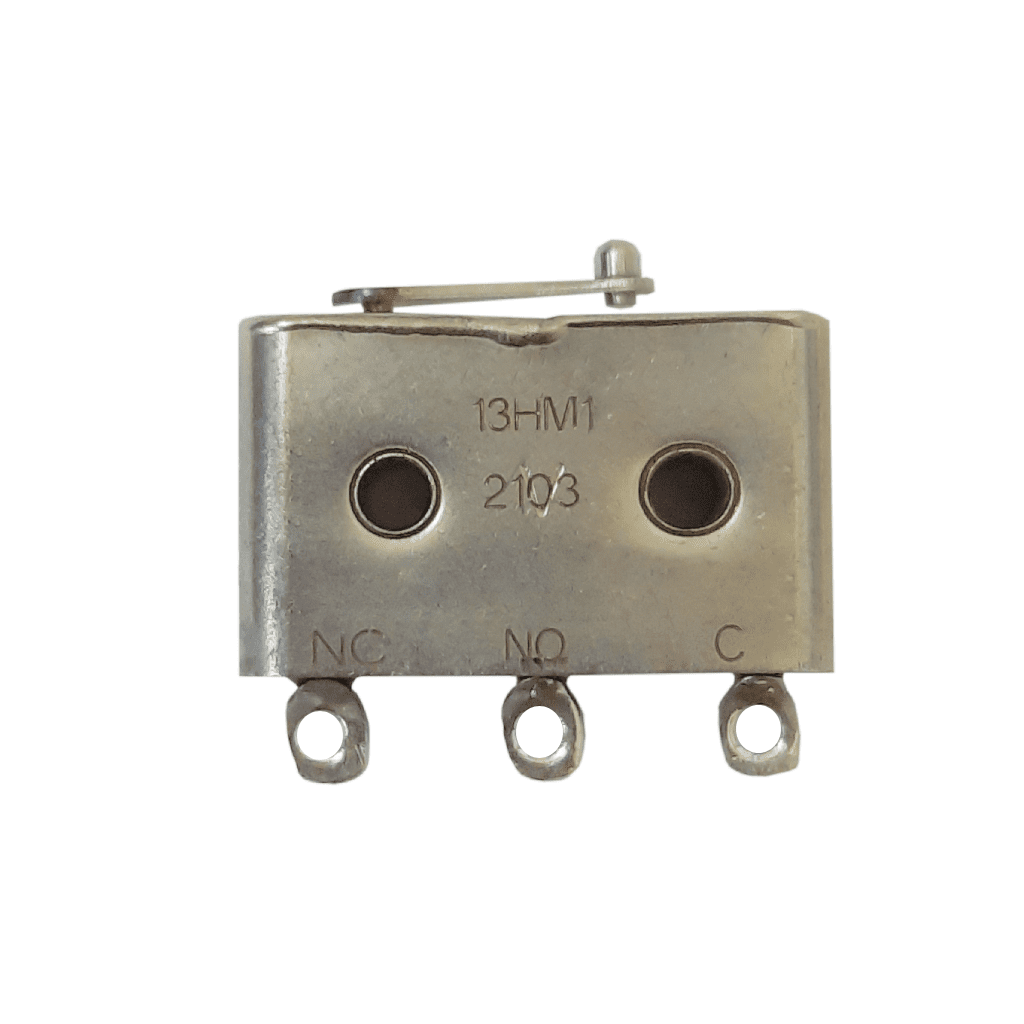

Name: 13HM1 Honeywell Hermetic Sealed Basic Micro Switches
SKU: 58695
Price: 21000.00 INR
Availability: OutOfStock

13HM1 Honeywell Hermetic Sealed Basic Micro Switches

Available on order

₹21,000.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model Number	13HM1
Type	Hermetic Sealed Basic snap-action Micro Switches HM Series
Housing material	Stainless steel
Mechanical endurance	25,000 operations min.
Electrical endurance	25,000 operations min.
Dielectric voltage (initial)	1000 Vrms for 1 minute
Circuitry	SPDT
Contact material	silver, gold, gold bifurcated
Electrical rating	up to 4 A at 28 Vdc
Sealing	symbol 5, hermetic sealed to MIL-PRF-8805
Temperature range	-65 °C to 121 °C
Vibration	symbol 2 (15 g), 10 to 2000 Hz
Mechanical shock	shock type M (100 G, saw tooth)
Approvals	MIL-PRF-8805, UL 508

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

13HM1 Basic Micro Switches , miniature basic switches are designed for a variety of commercial and military aircraft as well as equipment for deep space applications (high altitude requirements). 13HM1 Basic Micro Switches miniature hermetic sealed switches can be found in a variety of other applications including military land vehicles, marine environments, and other harsh industrial environments. The switches are available as a MIL-PRF-8805 qualified switch. Select HM switches are available with UL 508 certification for industrial or surface transportation applications. The MICRO SWITCH HM hermetic sealed switch design incorporates the glass-to-metal and metal-to-metal sealing with more than 50 years of use in multiple applications
