Name: 11SX1-T Honeywell Micro Switch
SKU: 64946
Price: 1925.00 INR
Availability: OutOfStock

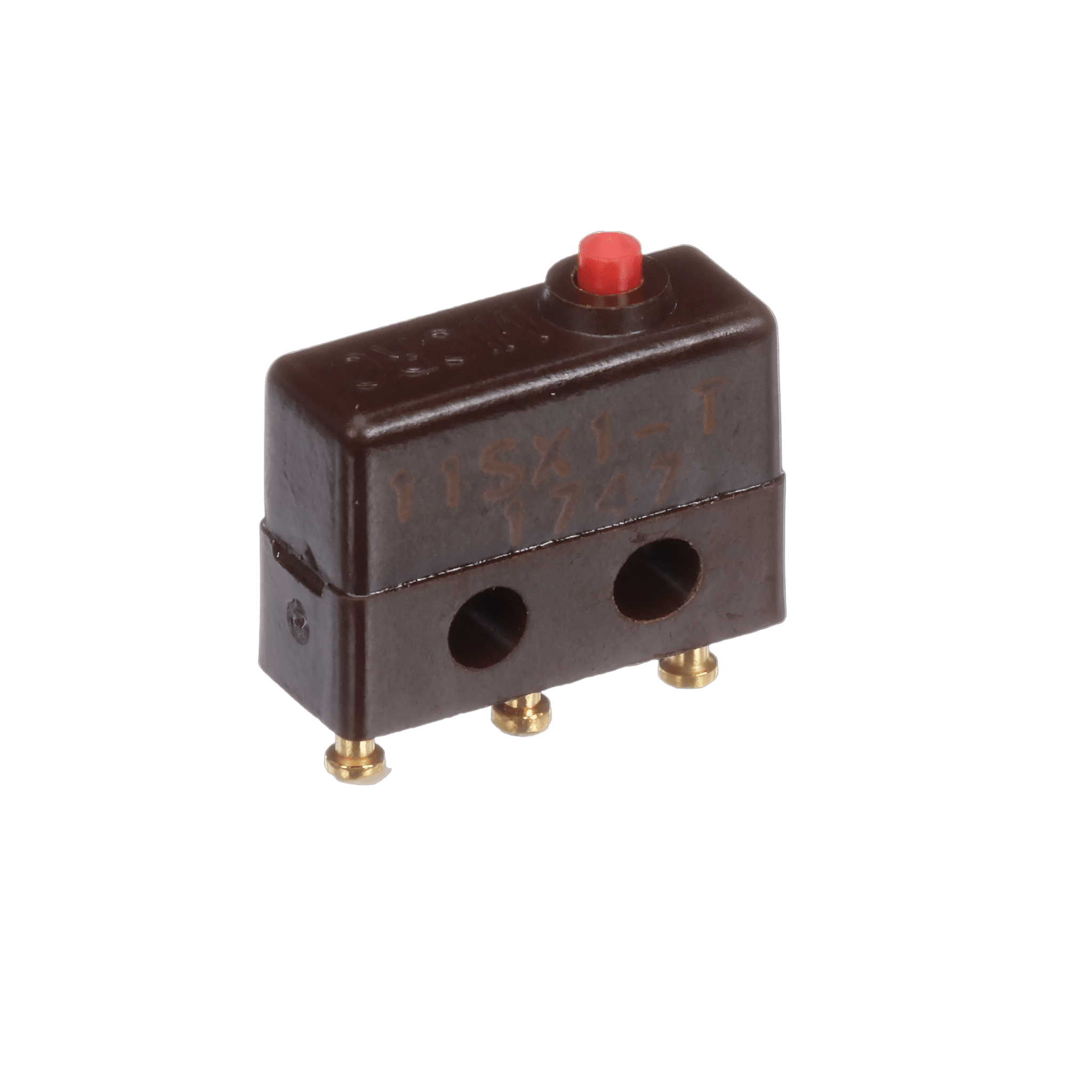

11SX1-T Honeywell Micro Switch

Available on order

₹1,925.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	11SX1-T
Differentiator	low operating force to 0,147 N [15 g] max; sensitive differential travel as low as 0,025 mm [0.001 in] max.; power load switching capability to 7 A
Ampere rating	1 A to 7 A
Circuitry	SPDT, SPNO
Operating force	0.71 oz to 6 oz
Termination	quick connect, solder, pcb
Actuator	pin plunger, straight lever, roller lever, simulated roller lever, offset flag lever, crossed roller lever
Voltage	125 Vac, 250 Vac, 28 Vdc
Agency approvals	UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA
Agency file information	UL: E12252; CSA: LR41372
Operating temperature	-54°C to 121°C [-65°F to 250°F]; select catalog listings 204°C [400°F]
Contacts	silver, gold-plated, bifurcated gold
Housing	phenolic or thermoplastic polyester
Sealing	not weather sealed
Mechanical life	up to 10,000,000 operations for 11SX Series up to 1,000,000 operations for 1SX Series
Size	10,2 mm H x 5,08 mm W x 12,7 mm L [0.4 in H x 0.20 in W x 0.5 in L]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

11SX1-T Honeywell Micro Switch

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH™ premium subminiature switches are
designed for repeatability and enhanced product life. The MICRO SWITCH™ SX Series delivers consistent performance
within a range of conditions.
Offering enhanced repeatability, the MICRO SWITCH™ SX Series’ lower operating force provides for application versatility.
Like the MICRO SWITCH™ SM Series, the SX Series (which is a smaller package) offers gold contacts for low energy
switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the
SX switch.

FEATURES
